Gorj

I have a 15 amp plug-in inline fuse at the battery plus terminal and a 14 gauge wire running to the front behind the dash. I use that to power the radio and an LED light strip that is in shipment presently. I will mount the switch for the LED lights in the knock on the dash behind the steering wheel. I am mounting the 12" light bar on the front bumper, just in front of the grill. Are you aware there is an empty 12v. connection in the rear under the tailgate? It is powered when the lights are on. In the wiring diagram it shows to be for a license plate lamp.

Installed a radio/media player in my new Hisun Sector E1. Got a universal under dash kit from Amazon for $13, a radio/media player from Walmart for $17, and two speaker kits with grills from a friend for $10. Had some wire, connectors, and screws lying around. Mounted the radio in the plastic under dash kit. The radio is amazing for the price. It is only about two inches deep, but has Bluetooth, USB, and AM/FM radio. Mounted the speakers in the panel under the seat. Ran the wiring through the drive shaft tunnel. Installed a in-line fuse for the + wire and tapped in to the head lamp switch for the ign on wire. Tapped in to a ground wire in the wire loom behind the switches. I use this to play my tunes from a flash drive. I did not even bother to connect an antenna to it. Because the E1 is electric there is no engine noise to drown out the music!

Supplier says kit is on slow boat from China and will not be here for about 90 days. So it will be a while.

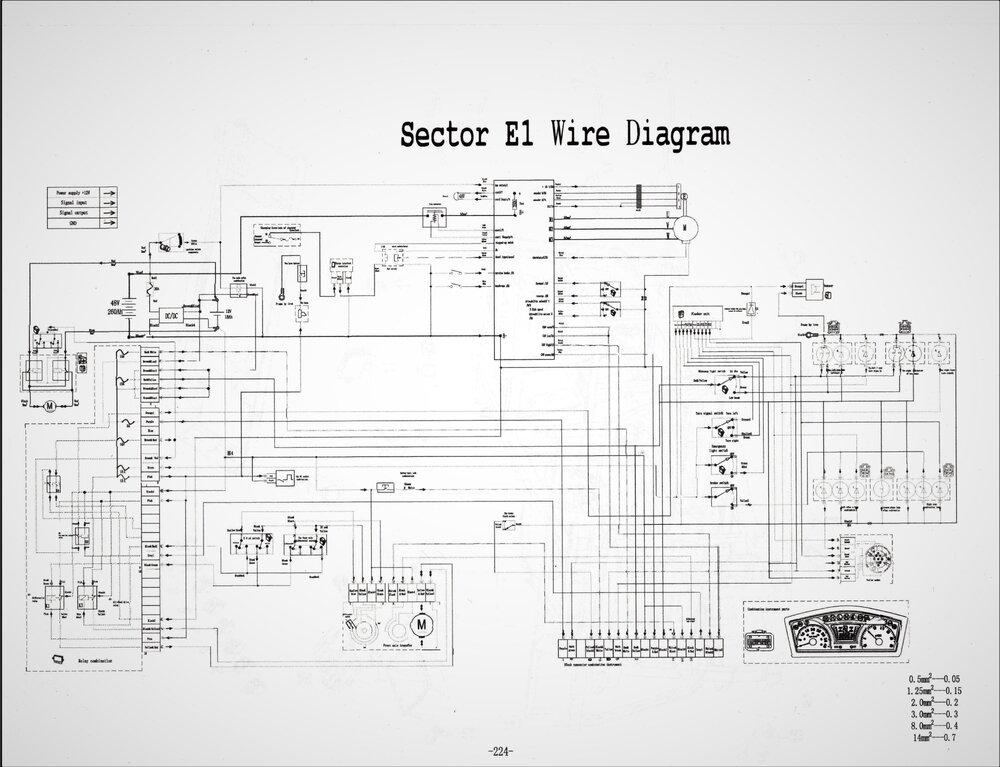

Here is a wiring diagram and the wire harness layout. Hope this helps.

OK, this all sounds like a battery issue. The electricity that controls your 4WD comes from the 12 v. battery under the driver's seat. The 12 v. battery also controls every thing on the dash and lights. The 12 v. battery get its charge from the 48 v. system via an electronic device. If you have not done so already, try charging it over night.

Even though the battery voltage shows withing specs, have your tried to charge it?

Has anyone had experience installing an ESP (electronic power steering) in a Hisun? I have a 2020 Hisun Sector E1 and am considering an EPS. Hison has a reasonably good video on YouYube, but I thought if anyone had first had experience they could share with me, it would be helpful. Here is what a kit looks like.

There is something not right. It is time to have your selling dealer check this out.

I have a new E1 and really like it. I am good friends with the local Hisun dealer. I will see if I can get a wiring diagram and post it here. I have found the Hisun customer service very anti customer!
