20?? Massimo MSU500 Info


Danny T

Recommended Posts

Hi guys.  I recently purchased a pre-owned Massimo MSU500.  It has a few small issues that I am working on, however, I have very little information on this UTV.  The guy that sold it to me said it was a 2004 year model.  I don't even think Massimo existed in 2004, so, I don't think that is correct.  I contacted Massimo Motors customer support and provided them the VIN number and some photos of the machine, but, they said they have no record of that VIN and couldn't help me.  I find it ridiculous that the manufacturer cannot help with their own machine.  Does anyone know of any other way to find info for this machine.  I need to know the year model in order to find the correct parts.  I can attach additional photos if that will help. Thanks in advance.

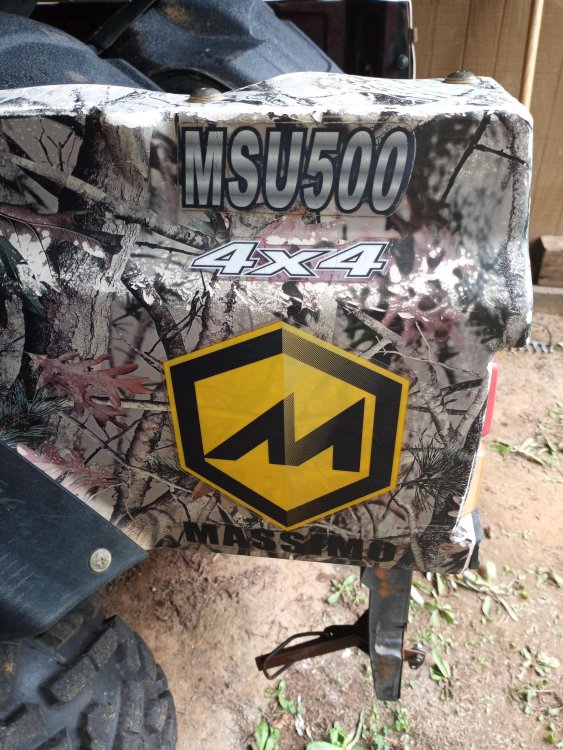

20?? Massimo MSU500

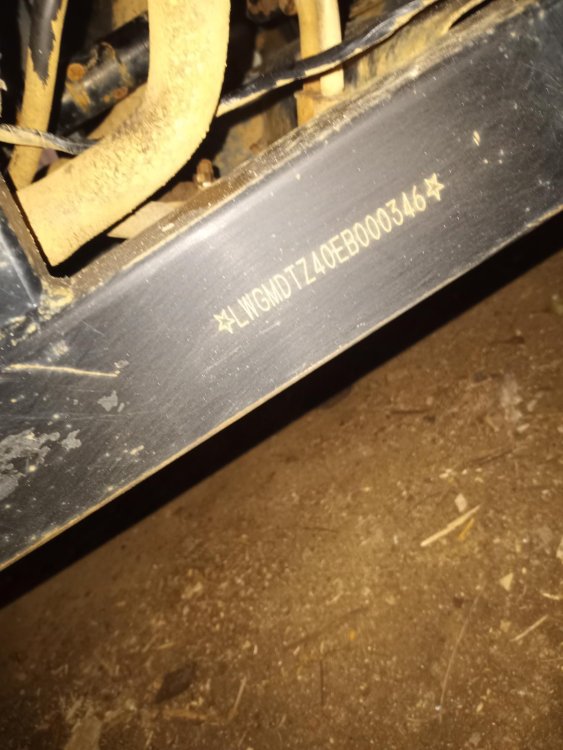

VIN # LWGMDTZ40EB000346



Link to comment
Share on other sites

Shop battery chargers at ChromeBattery.com

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

  • Similar Topics

    • By Kierobi
      New to owning a UTV and got myself a project one as my first one.
      Changed out the clutch and clutch housing etc. as the UTV was having problems going up hills and getting up to speed but now in the process of putting it all back together it won't start. Also changed fan gears for shifter
      Here's what I've found so far (apologies for the bullet points);
      Motor will crank over and makes good turnover speed.  If I use spark plug tester or ground to engine, no spark.  At the connector to the ignition coil I get consistent 12v on the white wire and nothing at the black. Read in one of the posts that the 12v to the white wire should be intermittent when trying to get a spark at the plug? Tested ignition coil using a multimeter on resistance setting. Between two pins I get 0.46 ohms or thereabouts. Between either pin and spark plug boot I get somewhere around 16k ohms. Not really found a good video on testing these coils but think those are good readings.  Checked fuses in fuse box and are all good.  Fuel pump cycles on when I turn key to on position.  I disconnected the ignition coil to remove the clutch etc. to get it out the way but don't think I've damaged anything in the process.  Can anyone point me in the direction of what to try next? Been trying to use the manual but considering the test procedure for the ignition coil is for the wrong type of coil, it's not been too helpful. I've read on another post about checking the ECM the two pins with 12v etc so will take a look at that next but any ideas that could get this machine started again are welcome!


    • By Weber
      Hello.  Can anyone provide location of fuel pump relay switch.  According to the tech at Massimo it is not in the fuse/relay switch box but mounted near the fuel pump, but I am not seeing it.  Pics would be appreciated also and thank you in advance.
    • By Phil S
      I have a Massimo Buck 450 and last winter I had the snow plough added by my dealer. After about 15 minutes of ploughing the plough went down but would not lift up. Upon inspection, it appears that the winch is permanently in the free-spool. When you try to wind back in the spool just spins. It is out of warranty and upon looking at replacing I am not sure how I would go about it.
      Has anyone had similar issues?
      Has anyone replaced it with a new winch? is so what model and how was it installed?
      Any help is welcomed.

    • By SteveMO
      Folks:

      I live on 11 acres that demands a bit of maintenance, and co-own a large farm a couple of hours away that I hunt on (professionals do the farming).   My mowing/brush control/trail maintenance duties are handled by a 57" rough cut mower (Kunz brand), and I also drag logs and pull sprayers and seeders for food plots and such.
      I've been using a  pair of ATV's for decades to handle this work - a 750 for when I need real power (or need both machines at the same time when I have help) and a 500 cc with fixed rear axle for most duties.

      Some of the places I need to work are VERY rough, and very three-dimensional, with steep ups and downs and some side-hilling I've learned the hard way not to try with my independent rear suspension 750, but handle with ease with my fixed rear suspension 500.

      I've decided I want to sell the 750 and replace it with a UTV that I hope to use as my main workhorse.  If anyone makes a working UTV that fits my specs that's what I'm gonna do.  This is an all-work machine, I don't do any recreational riding so don't care about things like top speed.

      So looking for advice on what models might handle what I'm looking for:

      Gotta have:
      2 passenger (1 row)
      selectable 4wd
      Power steering
      Selectable gearing (not CVT)
      Power-assisted dump bed
      Engine cooling adequate for all-day slow-speed work in the summertime.  Like towing a 700lb mower at 4mph all day in 100° weather)
      Beefy tow rating, including tonque weight.  Nobody ever mentions tongue weight because that exposes how crappy independent rear suspension is for towing safely in rough terrain.

      Really want:
      Selectable locking diff
      Fixed rear axle (Isolates tongue weight from rear suspension.  Holds more stable & consistent center of gravity than IRS over side-slopes and other complex terrain, and keeps geometry and suspension response consistent over wide range of tongue-weight of towed loads)
      Slow speed cruise control (Factory option or aftermarket, covering at least 4mph - 10mph. For calibrated spraying and controlled mowing speed.
      Muffler designed for quiet operation for comfortable all-day use, and to minimize disturbance for getting to hunting grounds.  Not concerned about normal motor noise, but don't want something specifically piped to "sound fun".

      Any advice on brands or models I'm most likely to have luck with?

    • By jewettperkins
      Does anyone know the part number for the stator and flywheel on the 2015 intimidator 750 gas? It has a kohler Ech730-3036 engine.
