American Landmaster EV 2022, Will not go Forward or Reverse

D. Newton
 Share

Recommended Posts

D. Newton Rookie

D. Newton

Posted
Posted

Hi All, again,

Now the Landmaster will not engage in Forward or Reverse, less than 20 hours run time.

Did a quick diagnostic with Navitas Dashboard App, problem:

Bus Under Voltage Fault

Description: Voltage on controller B+ has dropped below 18V
Check batteries, solenoid and connections
(3-1)

Email problem to Navitas.

Still 50% battery supply, charging anyway.

Will check items above plus wiring tomorrow, sun going down.

D. Newton

American Landmaster, EV, Purchase Aug 2022.

Extras - Power Steering, Roof, USB port.

Link to comment
Share on other sites
Alex

Alex

Posted
Posted

I noticed you added some manuals for your American Landmaster EV, thank you for sharing. Hopefully you will figure out the issue. This is one of the few EV topics I have seen, but I'm sure it'll grow as EVs become more widespread.

Here are your manuals. I edited the screenshot and descriptions.



Link to comment
Share on other sites
D. Newton Rookie

D. Newton

Posted
  • Author
Posted
On 11/10/2022 at 6:55 PM, D. Newton said:

Hi All, again,

Now the Landmaster will not engage in Forward or Reverse, less than 20 hours run time.

Did a quick diagnostic with Navitas Dashboard App, problem:

Bus Under Voltage Fault

Description: Voltage on controller B+ has dropped below 18V
Check batteries, solenoid and connections
(3-1)

Email problem to Navitas.

Still 50% battery supply, charging anyway.

Will check items above plus wiring tomorrow, sun going down.

D. Newton

American Landmaster, EV, Purchase Aug 2022.

Extras - Power Steering, Roof, USB port.

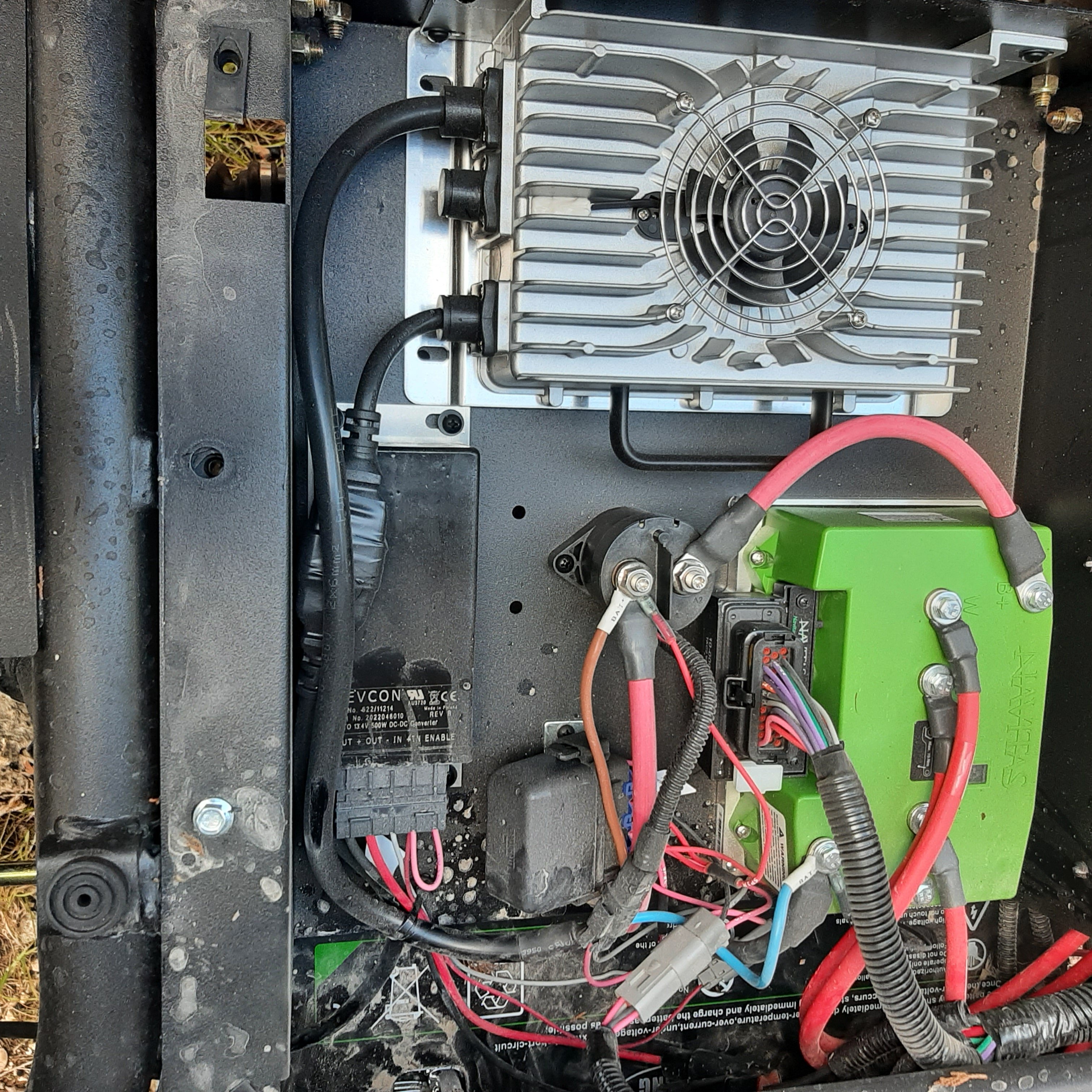

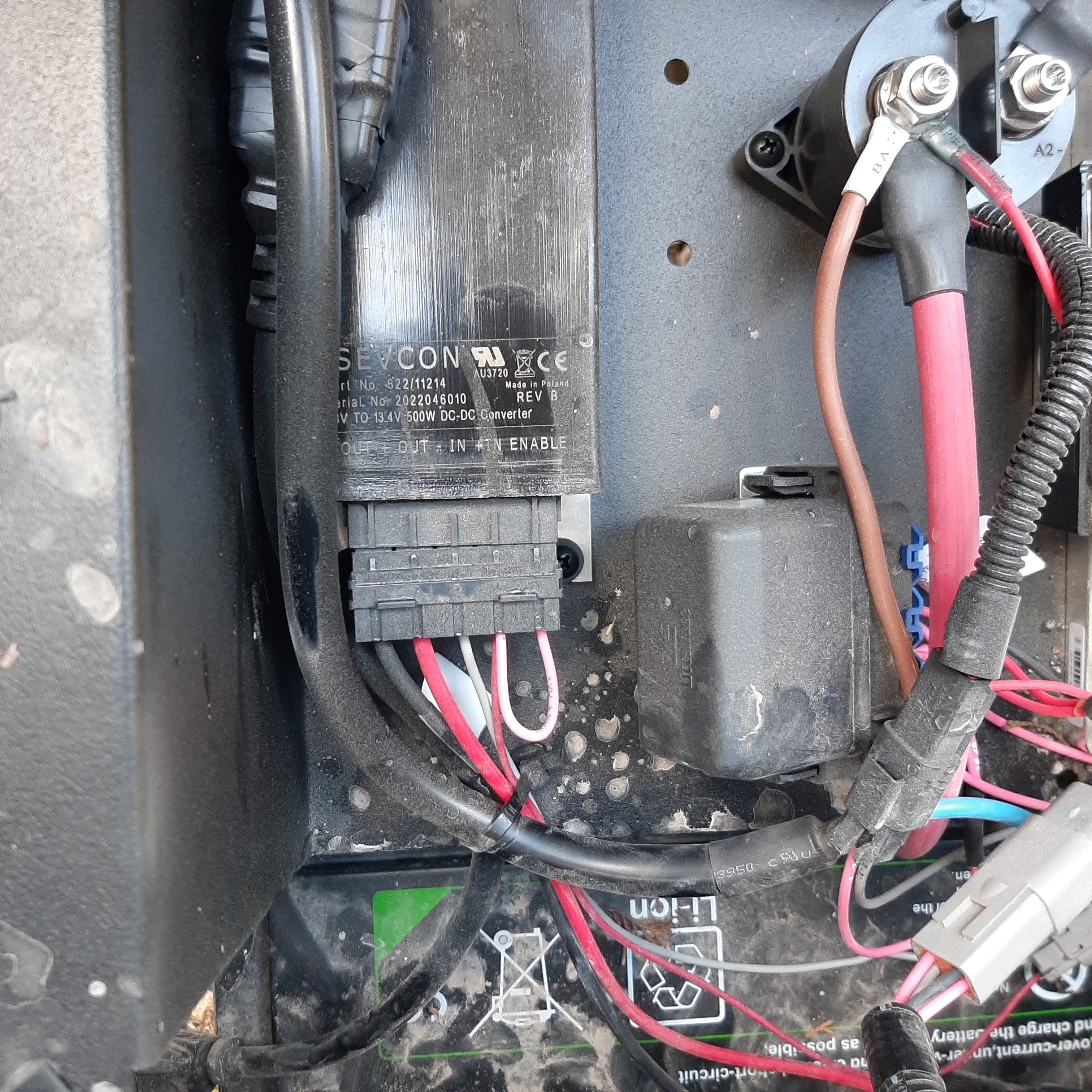

Hi All, Well I did some troubleshooting (shotgun work), and I got the vehicle working.  I think the connect was not seated fully in the DC/DC Convertor (48v to 12V).  Not sure, I disconnected and reconnected a lot of wiring connectors.  See Pic1

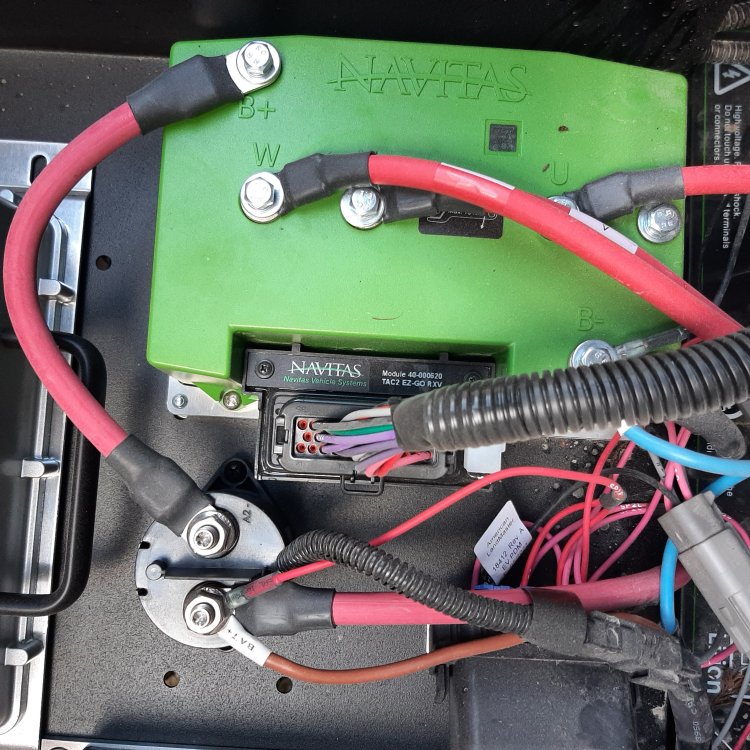

I was using the phone App, Dashboard from Navatis to communicate with TAC2 EZ-GO RXV Controller, the green brick, it has Bluetooth.  The App is not very stable, I had to uninstall and reinstall to get it to work.  Just a reminder.  Don
