2019 Coleman 550 Outfitter, need help accessing tail gate latch screws

[Ridge Runner]

Hi

i have a 2019 Coleman 550 Outfitter.  The tail gate has a pin on each side, that snaps into latch blocks that are mounted on the inside of the tail gate opening.  There are two M6x16 pan head screws(bolts?) that hold the latch blocks in place.  The screws enter from inside the bed body, and I can’t figure out how to access them.  This is right by the tail light assemblies.  I tried taking a pan head screw out of the fender lip, but found out there is not a nut firmly inplace, to hold the pan head screw in.  Bottom line I’m making it worse.
coleman was no help.  If I could figure out how they attached the tail light, then maybe I could put the latch screws in through the tail light hole.  Any ideas?



thanks

Ridgerunner

[Ridge Runner]

Does anyone know how to remove The tail light assembly?  That should give me access to the screws that holds the tailgate latch assembly in place.

[Alien10]

It looks like there are two bolts (6) that go through the rear "U" frame of the bed from the sides,  into the latches (29) that the pins (25) latch into.  Not sure if this is of any help but here is a diagram of the parts without the bed liner.



[Alien10]

These diagrams are a little vague but maybe can shed some light on how the bed box is assembled?

[Ridge Runner]

Thanks Alien10.  From the diagram, it looks like I may have to completely remove the bed.  I tried removing the fender lip, but I found out the hard way, that there is no way to put the screws back in, to reattach the lip, because the nut on the inside is not accessible.  I’d really like to know how they put this bed together.  Thanks for the diagram.

[Ridge Runner]

Thank you, from the second diagram, maybe I can take off a side of the bed.  Thank you very much.

[Alien10]

Slightly enlarged view of the bed arrangement.   Hoping these are of some help.

[Ridge Runner]

Thank you, I’ll try to take the side panel off!

[Alien10]

Yes, they are not the most user friendly assemblies nor are the diagrams.   While there is a section on "removing the bed" they seem to have completely neglected to insert any text to that effect. Wonderful!

Are your latches damaged?  If they are just jammed up, try to use a pressure washer or hard stream from a hose to flush them out.  Follow that with liberal doses of WD40.  Working them best you can to free them up.

[Ridge Runner]

It’s really a tough thing to figure out.  My latches are both good, and working, but one side the bolts that hold the latch came loose.  One is missing, and the latch is barely hanging on, to the other bolt, but it’s loose and floppy.  I ordered new bolts/screws, but I can’t get inside the bed assembly to tighten the remaining bolt and replace the one that fell out

[Alien10]

Ya, looks like you gonna have to get behind that mounting somehow to reach the bolts.

[Ridge Runner]

I’m at a standstill.  Can’t figure it out, this should be simple.  I’m sure someone has had to replace a tail light.  Same dilemma, how do you access it?

[Alien10]

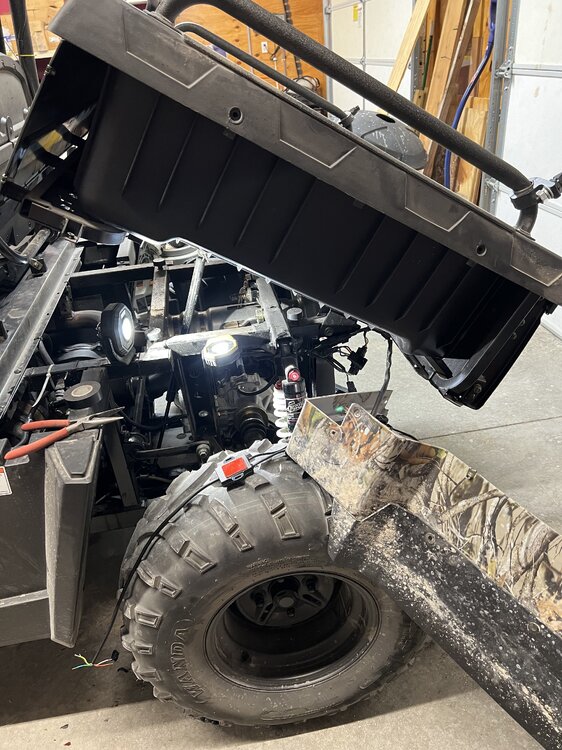

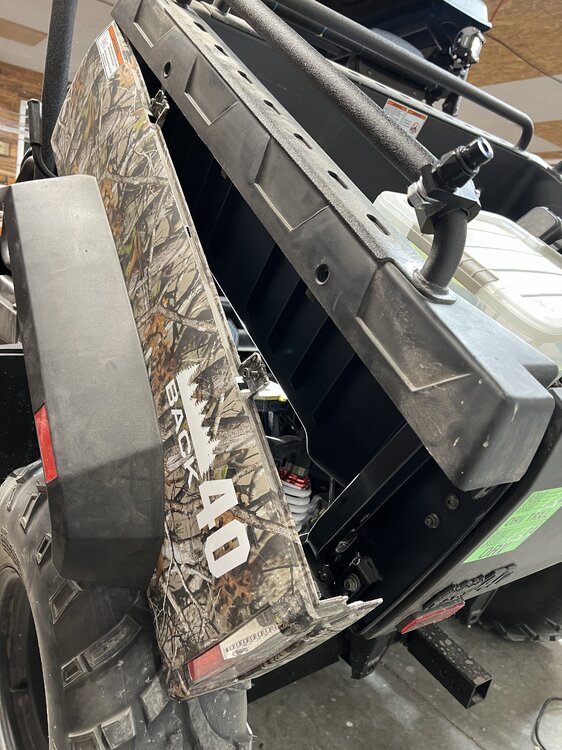

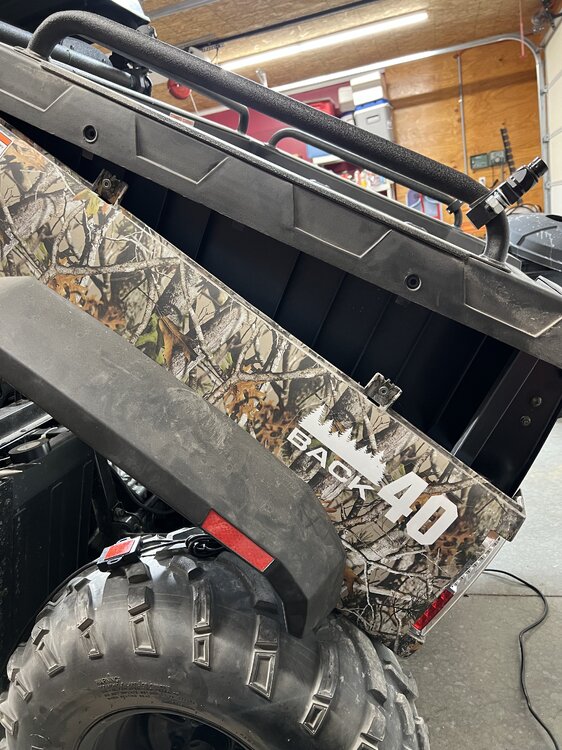

While stacking fire wood, I was looking at my dump box.  There are screws along the bottom and at the front of the side panel  that hold the side panel in place, but there is also the top plates (#11 in the diagram) that have to come off.  There may be some side plate screws hiding under those. (See Note below)   Not sure if there are any side panel screws under the fender lip extension, it doesn't really appear to be so, but hard to tell from the diagram and they aren't visible on mine.  Hopefully, if you can find and remove the side plate screws, including any under the steel top plate, maybe you can pull the side panel away enough to access the latch bolts.

Note:  In the diagram, #3 are those annoying thread clips that the screws go into.  My experience with those on other machines is they tend to fall off when the screws are removed and drop out of site or into a crevice that is inaccessible.   So beware of those.  Again, maybe just removing the rear and bottom screws for the side panel will let you get behind it to the latch bolts.   What a nightmare design!





[Ridge Runner]

Thank you.  I took one of the fender lip screw/ bolts out, and now there is nothing for it to thread back into.  I concerned that if I take the other screws out, I’ll be worse off.  I’m looking for quick nuts, to see if I can get the bolt I remember back in place.

[Alien10]

I would never recommend this.... but.......  what if you drilled two  3/4" holes in the fender side directly opposite of where the latch bolt heads are?

There are real down sides to trying it:

• A: You have holes to plug or cover up some how.
• B: there might be something inside that is blocking access to the heads of the latch bolts after drilling the holes.
• 😄 You hit a tail light wire with the drill.

Possible resulting actions:

• A: Rubber grommets are available in common sizes to plug holes....
• B: If B is the case, you're sort of screwed, and back to square one.
• 😄 See action "B" directly above.

Under questioning, I'll deny ever mentioning any of  this.

[Alien10]

Those stupid smiley faces are supposed to be "C"   Thanks to auto fill or some AI crap.

[Ridge Runner]

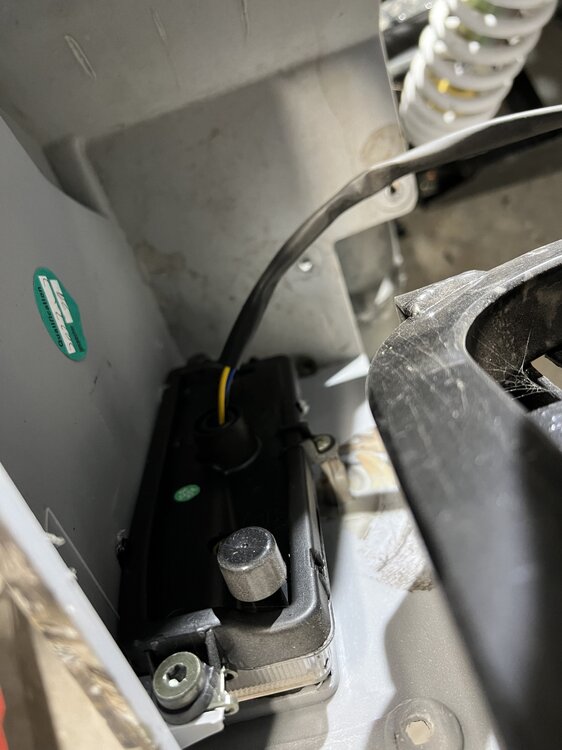

Thank you.  I’ve thought about drilling a hole, but the bolt heads line up with the back of the rear light assembly.  So I think, with my luck,  I’d end up ruining the light too.  I ordered some of the 6mm threaded quick nuts that slip over panels.  From the diagram you sent, they could be part number 3.  It’s really hard to tell.  Coleman was not any help, sadly.

[Alien10]

Ya, that would be my concern too, damaging the light assembly.

Did I mention how I hate  those "nut clips"?  They fall off and are lost forever.  Probably OK for the production line but removal and maintenance, they are horrible.

If you have any luck at all, please consider posting your results, it sounds like it could be valuable to other Coleman/Hisun owners.

Good luck to ya.





[Ridge Runner]

I hate those things too.  And with winter coming soon, I’d would hate to not have my tailgate working fully, or have it apart, and unable to get it back together.  Thanks for your help.  I really thought some one one the forum had to repair/replace a tail light assembly and would know the secret of getting it apart and back together
