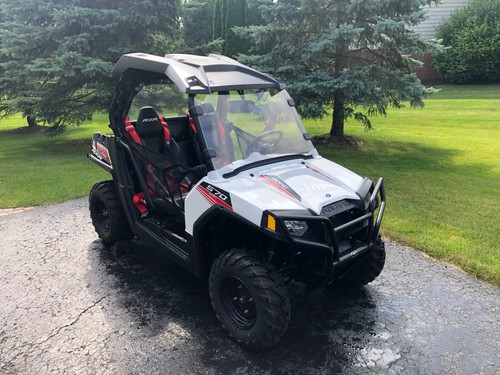

2016 Polaris RZR 570 SxS
-
Similar Topics
-
By res2fr
I have an issue and I'm hoping that someone can help with a little Wisdom. I have a 2016 Massimo MSU500 UTV that blew a time chain while out riding. It has been torn down to replave the chain and Sprocket amount other things that will be renewed. The problem comes in with setting Top Dead Center on the motor. The Manuals all teel one to line up hash marks on the flywheel with a point on the side cover under what's referred to in several place as a manhole cover. Its a large headed cap/bolt that unscrews and allows you to view the edge of the flywheel. There are hash marks on the flywheel that your supposed to turn the crank until you get the proper alignment between a certain hash mark and a reference point on the Case. Problem is there is NO reference point on the case there. I also have another 2016 MSU500 and a 2014 Coleman 500. Not one of these machines have a reference mark of any kind in that location. (I have pictures if needed)
I know I can use the old pull the valve covers and rotate the crank and rely on getting the right point where Both Intake and Exhaust valves are closed at hopefully the correct point in the piston stroke. Is there any other reference point that could be used for this or is this the only thing left to use for finding TDC? Gotta Love documentation that doesn't match the equipment it's supposed to be for, any help would be greatly appreciated. Even if just to tell me that's about my only option.
Thanks to all who even take the time to read my rambling question.
Robert
-
-
-
By johnpeter
2022 Polaris UTV Utility Ranger Crew XP 1000 NorthStar Edition Trail On Ebay
https://www.ebay.com/itm/225872999541?
-
By qajeff
Ok, battery was original, replaced it yesterday with a new one, fully charged ant went for a spin, noticed the red battery picture on the dash screen, also after 10 min drive, the power steering was jerky, like it was cutting out. I am thinking the unit is no charging when the unit is driving, should not have a light with a fully charged battery out of the box. Any suggestions, on what to replace ??
-
-
-
