Kawasaki Mule 550,520,500 Engine repair manual

View File

Kawasaki Mule 550,520,500 Engine repair manual

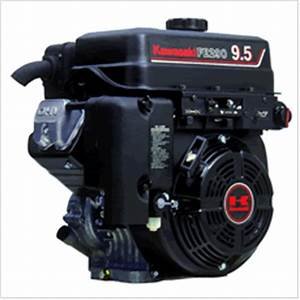

This file contains all specifications,troubleshooting and repair procedures for the FE290D  (9.5H.P,286cc) engine used in the  Mule 500,520 and 550 models.

Topics covered include,  general information, service data, disassembly, reassembly,inspection of parts and maintenance.

Notes:

Make sure you're reading the correct information as this manual covers multiple FE series engine, some of which were not used in Mules, the manual does a very good job of clarifying which specifications and procedures are for which Model engine.
