2018 Coleman Outfitter 550 (maybe) Camo

Shannon

By Shannon
in Coleman UTV SxS Forum

 Share
Go to solution Solved by Shannon,

Recommended Posts

Shannon Newbie

Shannon

Posted
Posted

I am trying to replace the gearshift fan gear which is eaten up on my machine. We were able to order an assembly on Amazon and it all went right into place except the fan gear itself. Ours has a splined shaft and the one we got is not. So we went back to the drawing board and tried to order the one we need but all we can find is just like the one we ordered the first time. I will include pictures of both parts and of the piece it attaches to.






motojoe Contributor

motojoe

Posted
Posted

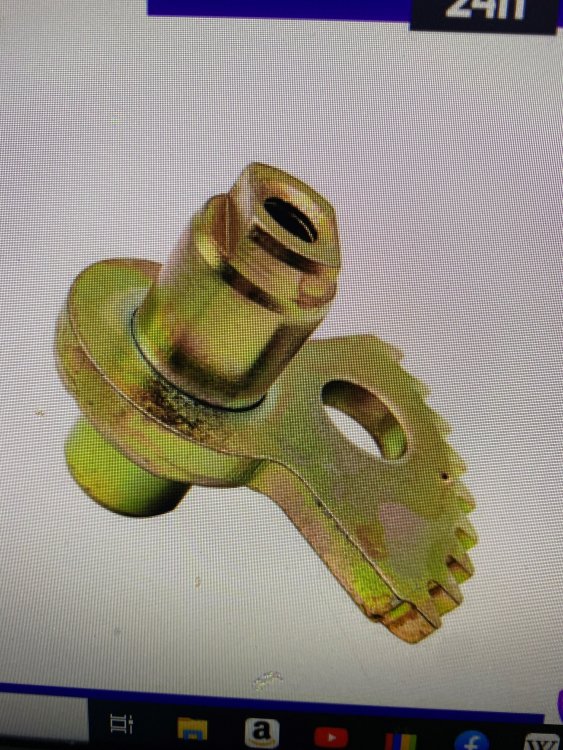

It appears that you are missing the gear sector (picture #2) on your new part.  For your new part you will need the "selector" that is made for your new part.  Why not clean up your old part?

Shannon Newbie

Shannon

Posted
  • Author
Posted

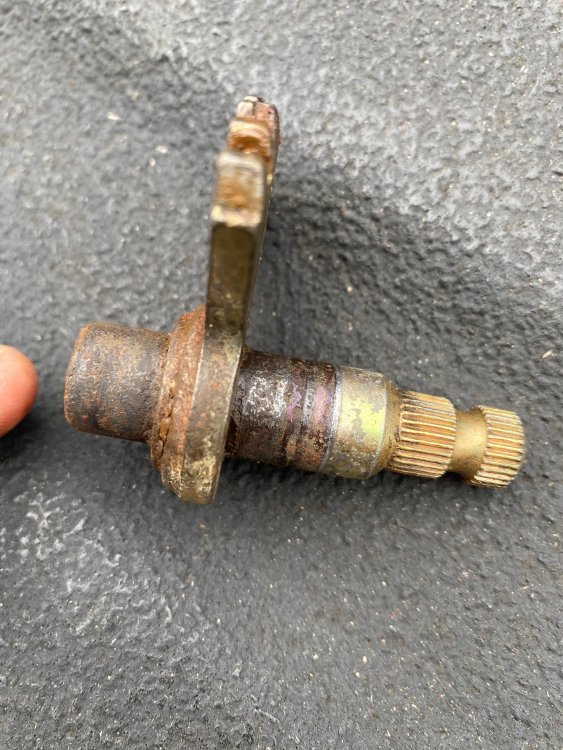

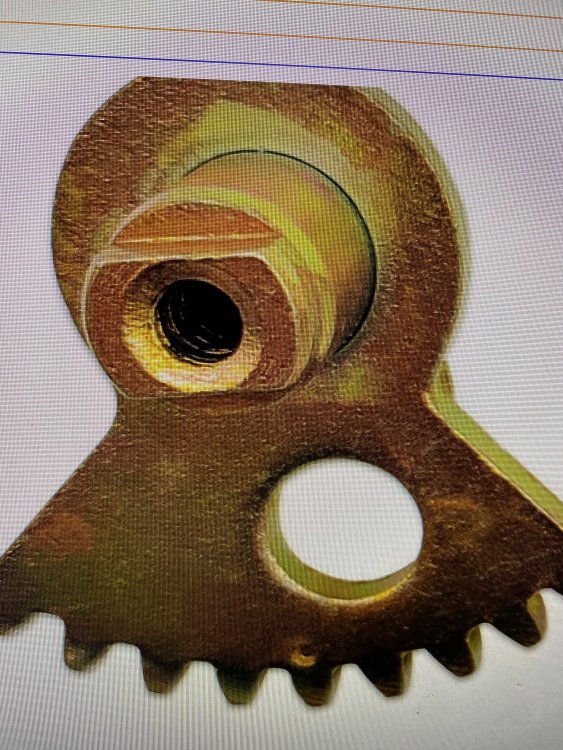

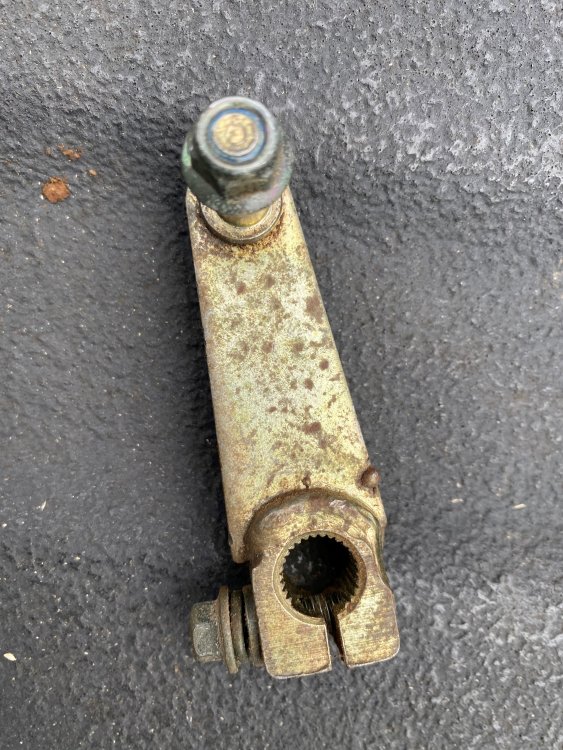

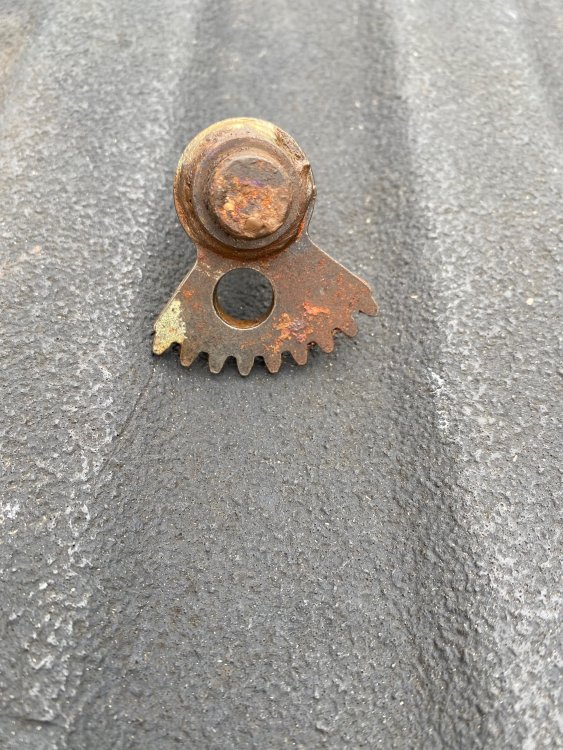

The teeth are eaten up. It's not clear in this picture but they are.  We have both parts, I just didn't take a picture of the other part. Pictures 1 & 2 are the front and back of the old part that the teeth are eaten up on. Picture 3 is splined piece that it fits into which goes to the actual shifter on the transmission. The last two pictures are of the part that is wrong. I am wondering if it is an improved version of it and we need to change the little arm part also.
