justingrider

2013 Hisun 800 Wiring Help

Recommended Posts

Good morning everyone, appreciate any help on this.  I picked up a 2013 Hisun 800 for a project.  Previous owner had fried a lot of the electrical with a bunch of aftermarket audio equipment, so I have been replacing all of the wiring to give it a fresh start.  I'm 95% there with a couple of plugs I can't figure out where they need to be routed and the reason for me reaching out for help here.

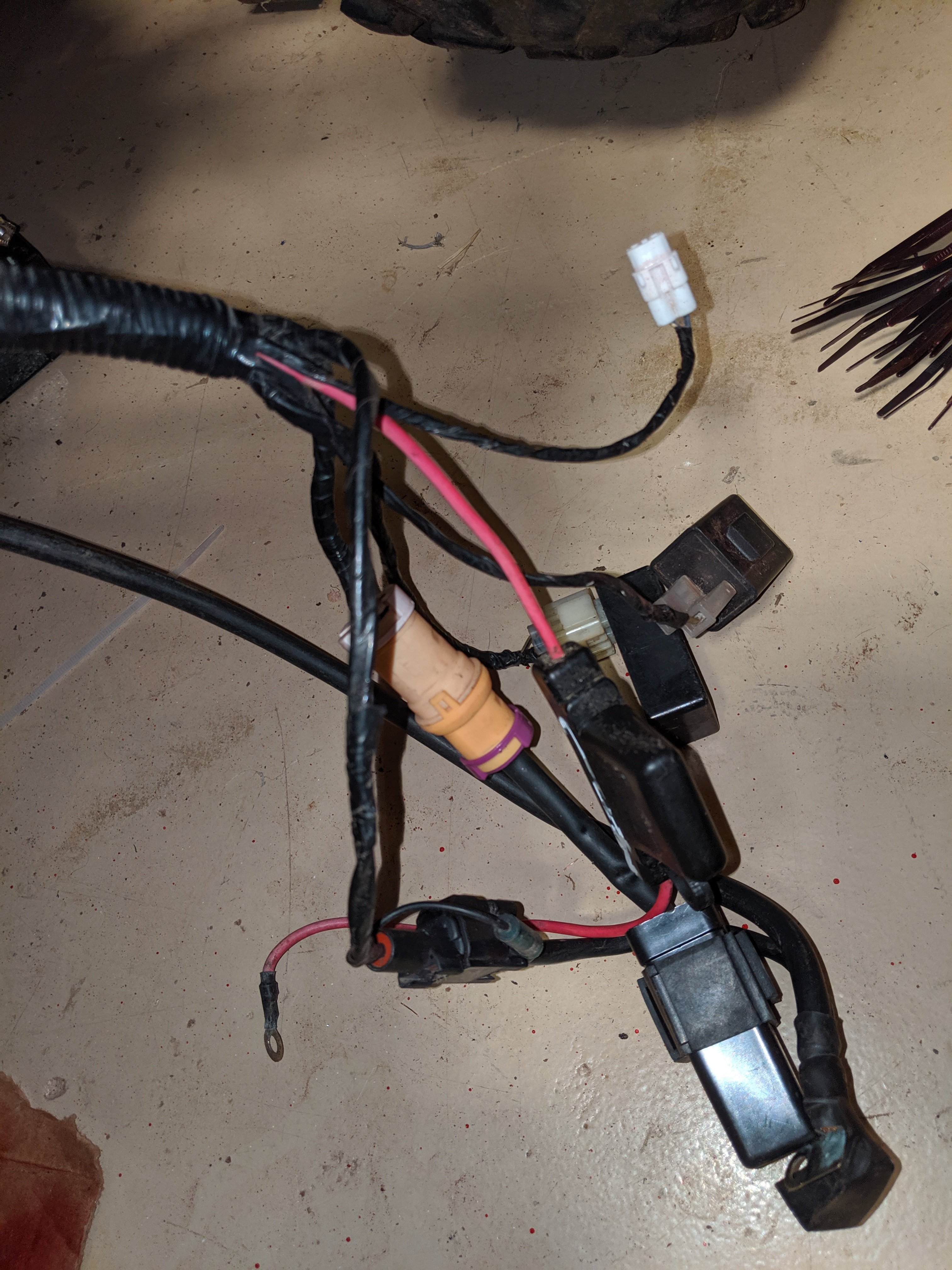

1.  A female 2-port white plug that comes off the end of the main harness, close to the side where the terminal hook ups tap into the battery.  It has a Blue/black-stripe wire and a White/blue-stripe wire. (Pictures: https://ibb.co/m9PRDqX and
https://ibb.co/9pHZsFj). I'm assuming it is another single offset fuse or module like the other pieces around it but can't find anything on what it might be or that wire color combination in the manual/wiring diagrams...anyone know what this guy goes to?

2.  On the crank position sensor (torque sensor), the wires that I have coming off of that are a green wire and blue/light-gray-stripe wire (https://ibb.co/FmJLJfs)...any idea on where this guy is suppose to plug in to?

Again, thanks for any help you can provide!

-Justin






Share this post


Link to post
Share on other sites


Hey Justin. I just bought a 2010 HS800 yesterday. I'm going to be removing the body panels in the next few days to have them wrapped. I will look for your wires and take some pics for you.

Share this post


Link to post
Share on other sites

Are you still trying to figure out the wiring?  I have a 800 as well and am trying to trouble shoot a no spark problem.  Let me know, the harness on my car is all connected except one mistrey plug.  Maybe we can shoot some pics back and forth and help each other out.

Share this post


Link to post
Share on other sites

Hey Steve, I did end up getting everything running.  Turned out my no spark issue was due to the voltage being too low from a replacement battery.  After getting a different battery it all started firing.

Glad to share some images back and forth to help troubleshoot once I get back to the house this weekend.

Share this post


Link to post
Share on other sites

Thanks man, i'll post some pics later today of the Mistry plug I have.  Im hoping that's the reason im getting no spark.

Share this post


Link to post
Share on other sites

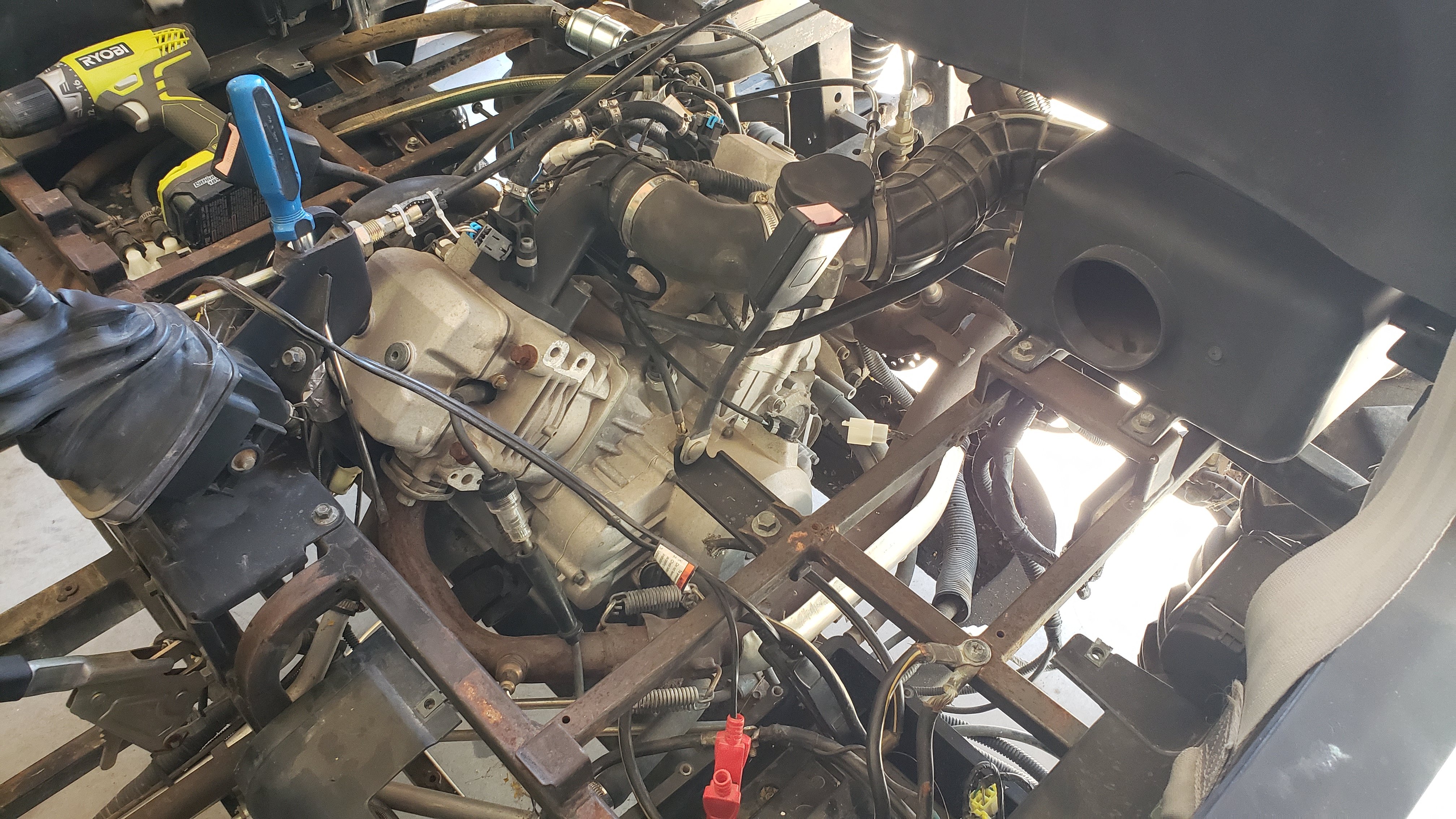

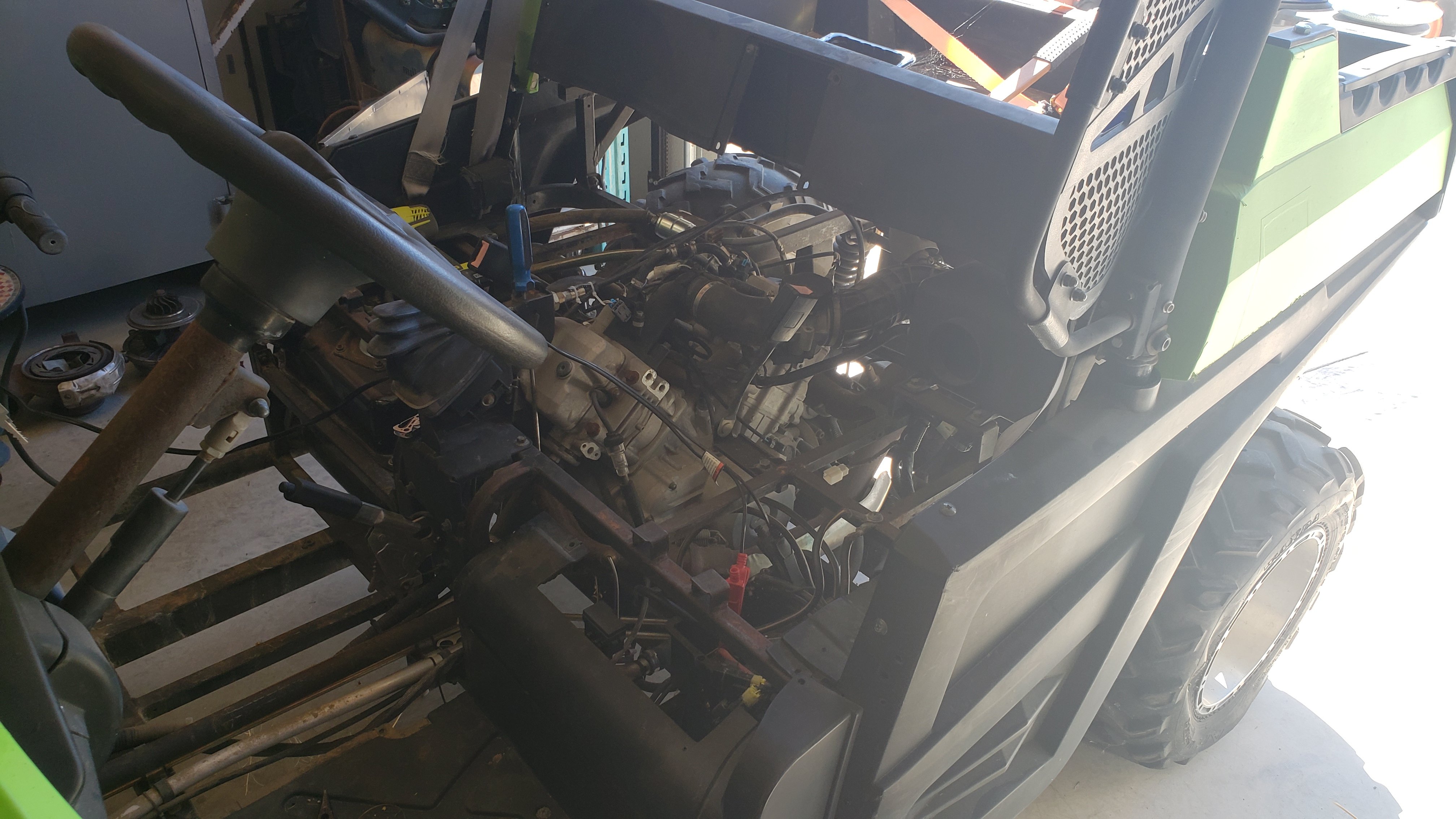

I got some pics for you to take a look at.  The pics are taken from the front driver side.  It took the pics from far to close, if you look close there is a with pigtail coming off the ECU harness on the right and if you look at the engine you will see a black sensor with nothing plugged in, i cannot find a plug for either of the two.   Any help would be awesome!!!  Thanks Man.






Share this post


Link to post
Share on other sites
