How to wire winch remote on Hisun Sector E1 ?


Recommended Posts

It's not immediately obvious to me how to wire a remote control (wired or wireless) on the Sector E1.

Has anyone here done this? Do you have pictures on how to get to the wiring?

Thanks!

Link to comment
Share on other sites

There’s a YouTube video “Tony’s Tractors “ that has a video showing him wiring up a remote on his Bighorn 550. It’ll be practically the same or at least get you in the ballpark.

Link to comment
Share on other sites

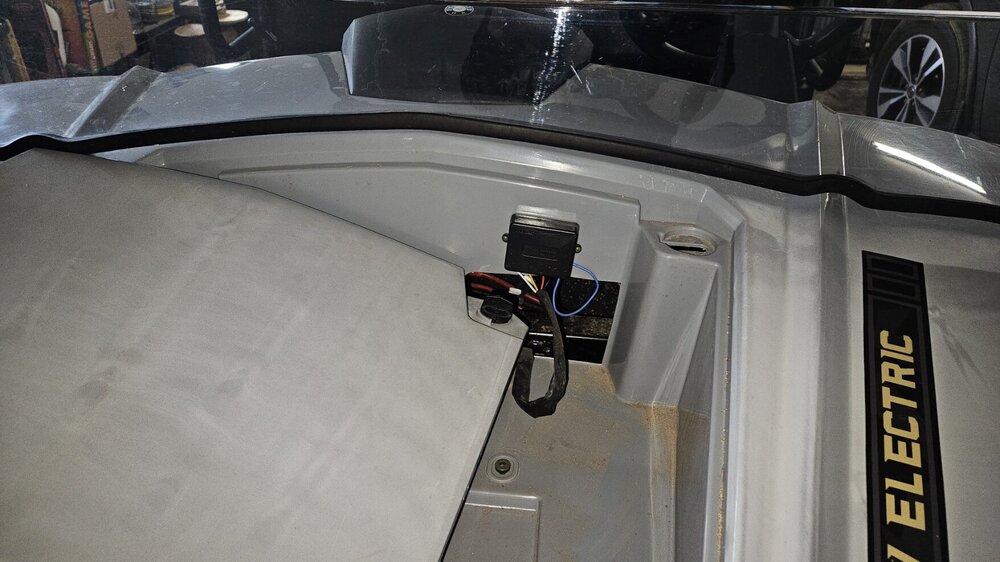

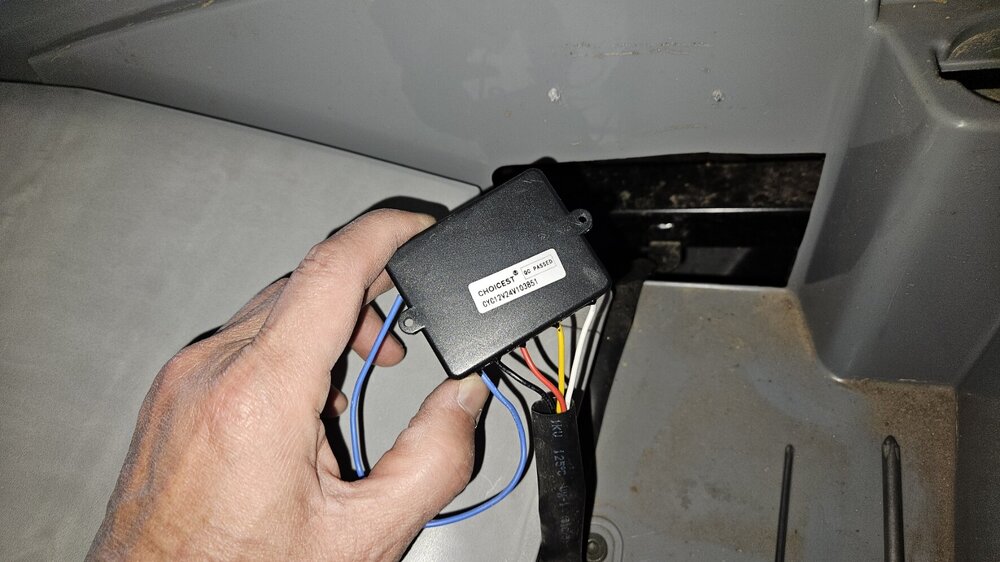

Well, it looks like there is a winch remote receiver mounted under the front hood.

I just contacted the dealer to ask them if they forgot to give me the winch remote transmitter, or if that's an upcharge. I'll update when I hear from them.







Link to comment
Share on other sites
