01 Mule 550.

I cant find the timing mark!

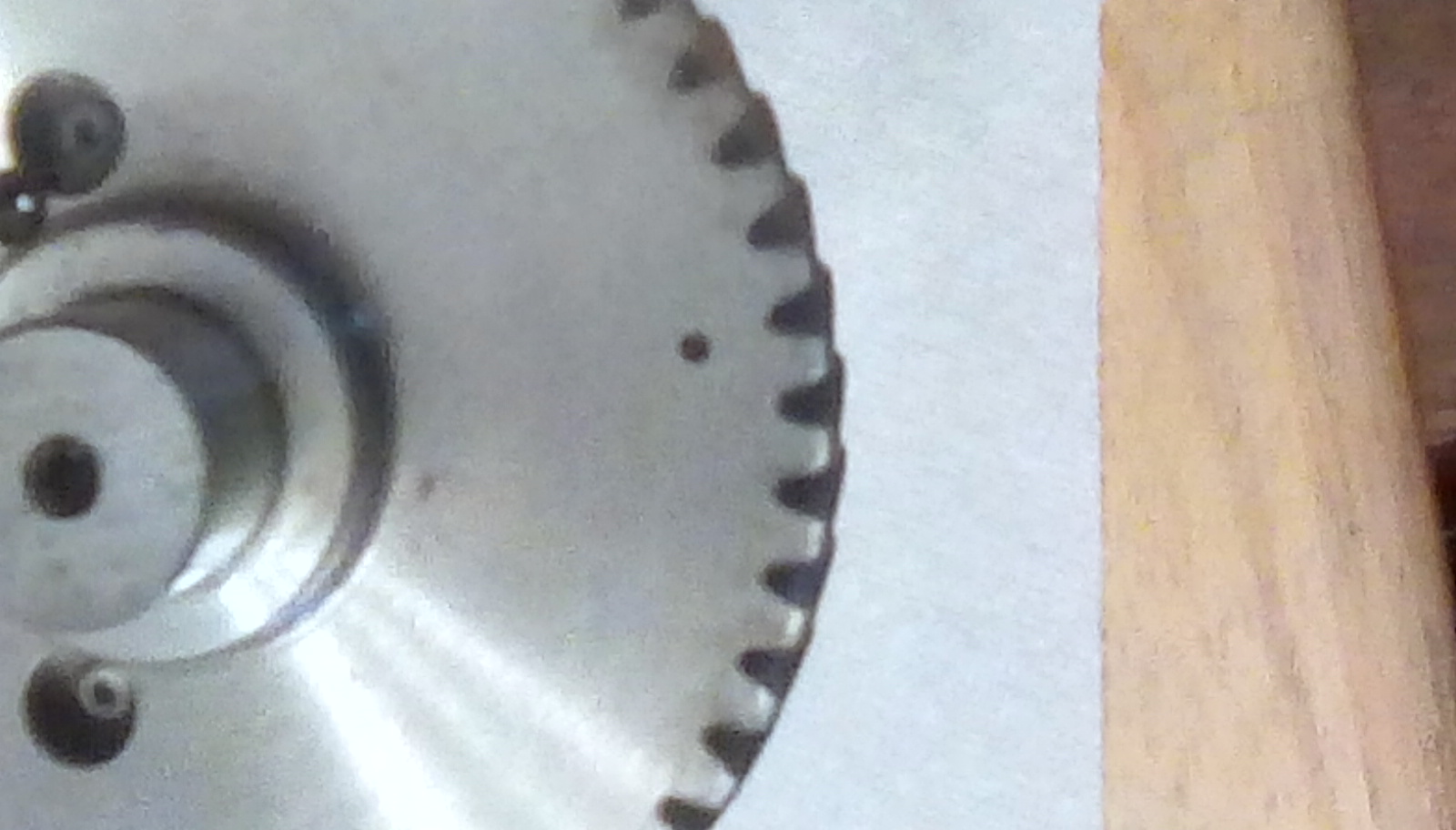

Is the dot on the 1st pic a timing mark or is it an OIL passage?

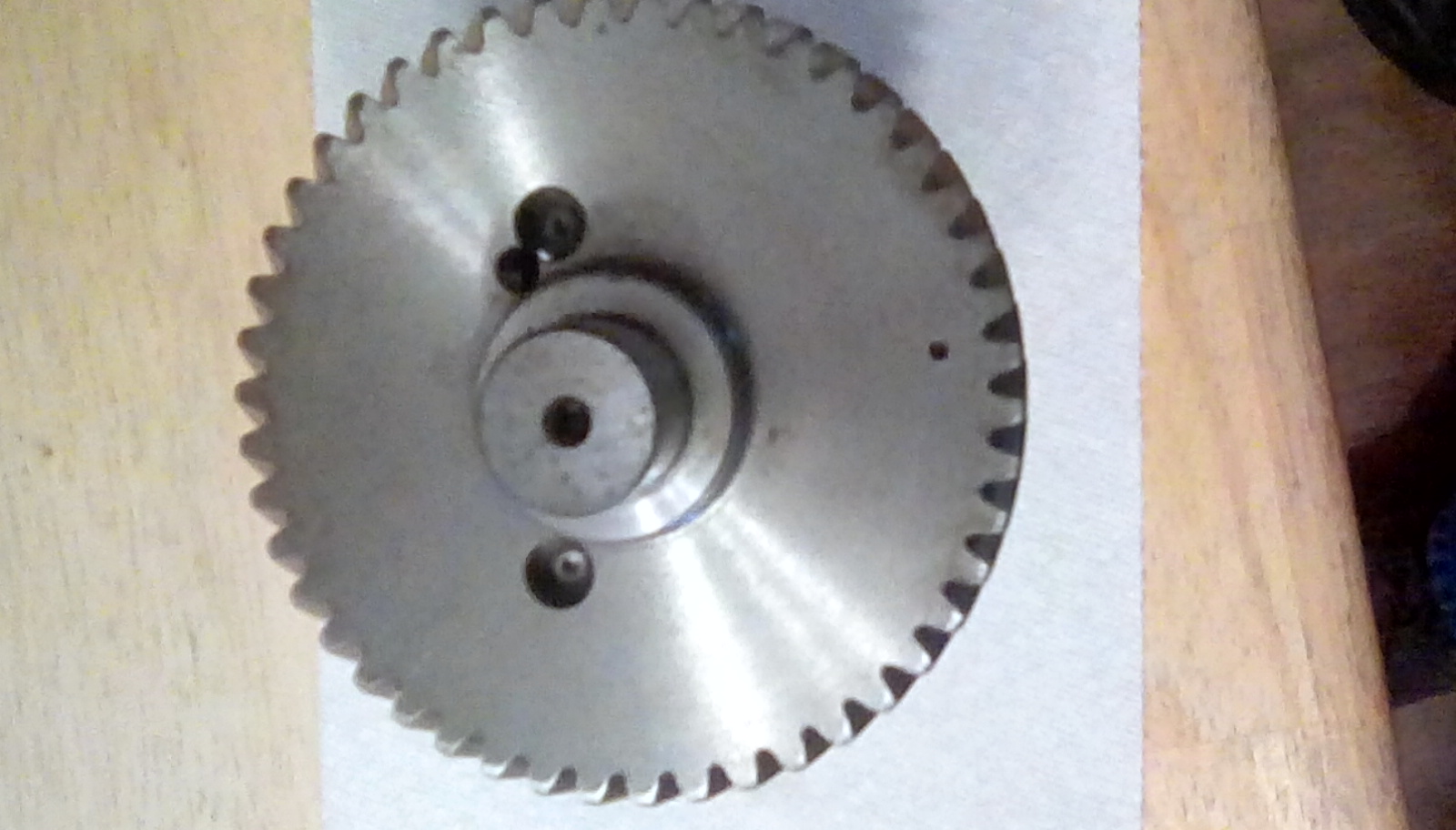

The 2nd pic is just whole cam it self. I can get more pics if need be.

Mule 1.jpg

M U LE 2.jpg

Share this post


Link to post
Share on other sites


It's a timing mark.  The crankshaft gear tooth with a timing punch mark is lined up with the camshaft punch mark.  You should get a service manual to ensure they are lined up correctly.

  • Like 1

Share this post


Link to post
Share on other sites

I do have the manual, it showed a picture, but it showed line pointing to where it looked it should've been on the tooth. and it was simple to time..
