shady light

09 joyner trooper t2 1100cc

24 posts in this topic

Hi everyone! I am the new proud owner of a 09 joyner trooper 1100cc.. unfortunately it has a few issues.. alternator, red shift cable,and power steering pump needs to be replaced.. it seems these parts are pretty pricey on any of the joyner dealer sights..i saw someone on here that said they have parts cheaper... any help would be greatly appreciated! Thanks in advance

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.


Welcome to the forum.

I don't get on here as much as I used to.

Man, as far as I know not many troopers had a ps pump. Can you get pictures?

I suggest finding alternative sources on as much as you can. If you can find an alternator or ps pump at the local autoparts store then you can just get it whenever and not have to order. I am certain there is info on this forum about another type of alternator that will work. Just keep searching.

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.
On 11/20/2017 at 0:51 PM, shady light said:

Hi everyone! I am the new proud owner of a 09 joyner trooper 1100cc.. unfortunately it has a few issues.. alternator, red shift cable,and power steering pump needs to be replaced.. it seems these parts are pretty pricey on any of the joyner dealer sights..i saw someone on here that said they have parts cheaper... any help would be greatly appreciated! Thanks in advance

Sounds like you bought a machine that has been modified with hydraulic steering.   Bad news in my opinion.  If the wires in the alternator still look good, it could just be the brushes, I've fixed a few for fellow members, just charge for shipping and parts I have to buy to fix it.

Take some photos of the rig and the bad parts and post them. Plus, fill out the profile, maybe one of us lives just around the corner

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

So my model of trooper did not come original with hydrolic power steering? And ive tried to post pics on here before and was unsuccessful.. some sort of jpg error..... i was thinking of just buying a new or rebuilt alternator for my machine.. seems the easiest way to go at this point..

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

upload your photos to google drive and give us the access code, how do the wires look inside the alternator?   still bright or ar they dark as in burnt.

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

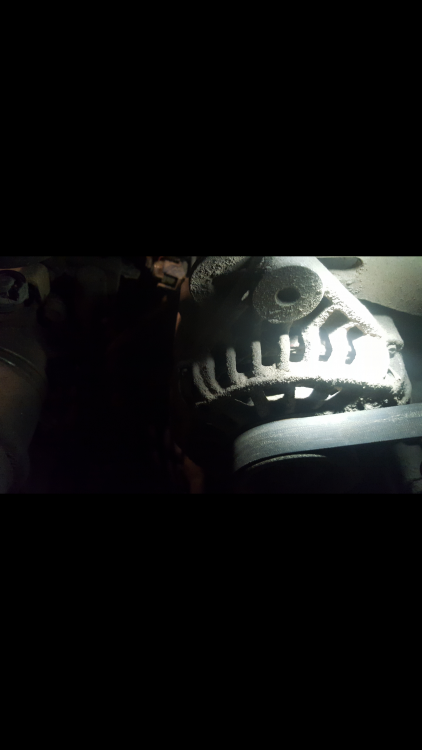

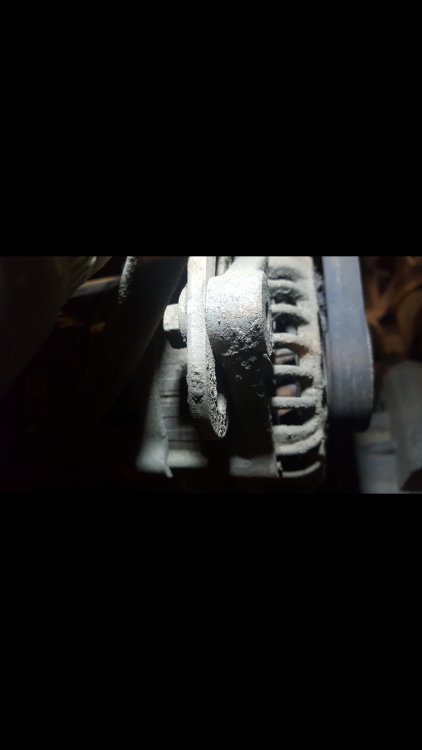

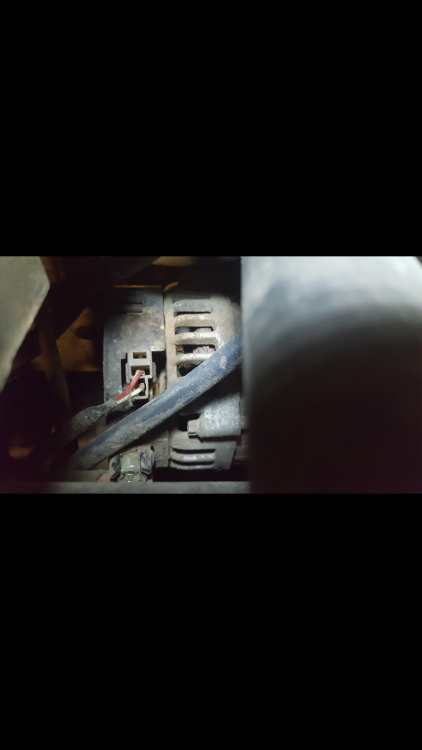

Its hard to tell because it is dirty.. and if i were a guessing man.. id say burnt or at least super weathered like its been sitting under water for a month.. i also noticed that both wires at the plug on the alternator both have 12v going in.. is that correct or may i have some sort of wiring issue?

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

YES, one is power out, one is sense from the battery so the alternator know how much to charge, ground is chassis ground.

photos didn't tell me anything, let's see your power steering

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

Im going to work on pulling it out today and pull it apart on the bench.. ill get you some better pics after

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

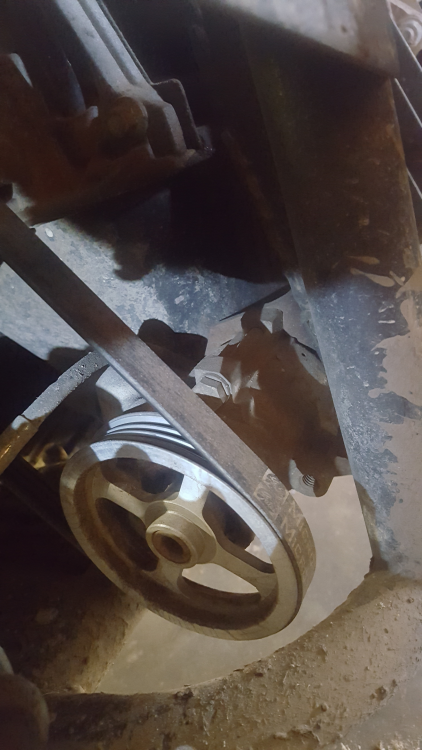

This is the hydraulic steering pump.. Probably also not a good enough pic.. it is located on the bottom right rear of the engine and machine.. the reservoir is a cast aluminum square box located on the front of the frame just under the hood.. my question is.. is it supposed to be vented? Because it is not.. it seems to be a sealed system


Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.


I'm afraid you're on your own, that's not on a regular Joyner, someone added that.  My question about hydraulic steering, what happens when the engine dies or the belt breaks?  Bad idea in my book.

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

Probably hydraulic assist. Need more info to go sort it out.

Pics of hydraulic set up on front and probably gonna have pull pump and get numbers.  Do not brake that pulley!

What's it doing that you think it needs foxed?

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

Squeels like crazy until I re bleed the system/ crank the wheel back and forth... every timeI start it... i was thinking of swapping to the electric power steering.. however seems a bit pricey.. ill work on pulling both and get back to you with better pics

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

Hard to say. You said squeals?

Usally they will whine if low in fluid.

Is the belt right enough? They squeal when belts loose.

There is variable that can cause this.

Did it always so this?

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

Yes since the day i bought it used.. ive had so many issues so far.. fan not working.. alternator.. power steering pump.. lights.. all and all it seems to be a well built machine.. but for the price i paid for it.. i expected a whole lot less issues

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.


The belt seems tight.. i will try to tighten it more and see if that makes any difference before i pull any more apart

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

I'm not a fan of any "cure in a can" solution, but you might try some belt dressing.  It makes the belt and pulley have a slightly higher coefficient of friction.  If the belt is slipping, that may help.  The squealing from belt slipping is different than a whining from low PS fluid level.

Another thought of mine.  Most PS systems that I'm familiar with  have the reservoir at the pump or very close to it.  Yous is located quite a distance; probably because of clearance problems with the installation.  That could be an issue.to consider.  Pumps are of four general types: a combination of high/low pressure with high/low volume.  PS pumps are Low Volume High Pressure.  They aren't capable of drawing a high vacuum through a long line.

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

So ive noticed.. i checked pressure from pump without the top on reservoir.. the fluid almost hit the ceiling in my shop.. i have a tractortrailer shop.. so the ceiling is above 13f

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

The pressure seems to be fine.. also tightened and tried belt dressing trick long before my post.. i am a mechanic.. but do appreciate and thank any and all input.. i do overlook dumb stuff just like anyone else.. im only human lol...

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.


Which leads me back to the original reason why i am mythed about it.. works fine after i turn the steering wheel back and forth a few times... belt is tight.. apparently good pressure... im thinking debris in the system.. if not it my be a check valve for ventilation.. but no one has confirmed weather or not it is a closed or vented system... no one knows anything about my abomination lol..

Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

I would think any hydraulic system, if vented, should have a very outstanding filter to keep dust and debris out of the system, especially of road vehicles.  Here's a l;ink that addresses the placement of the power steering pump's reservoir.

http://www.pscmotorsports.com/pdf/tech/reservoir_tips.pdf



Share this post


Link to post
Share on other sites
  •  Like what you are reading? Please help us by sharing this content.

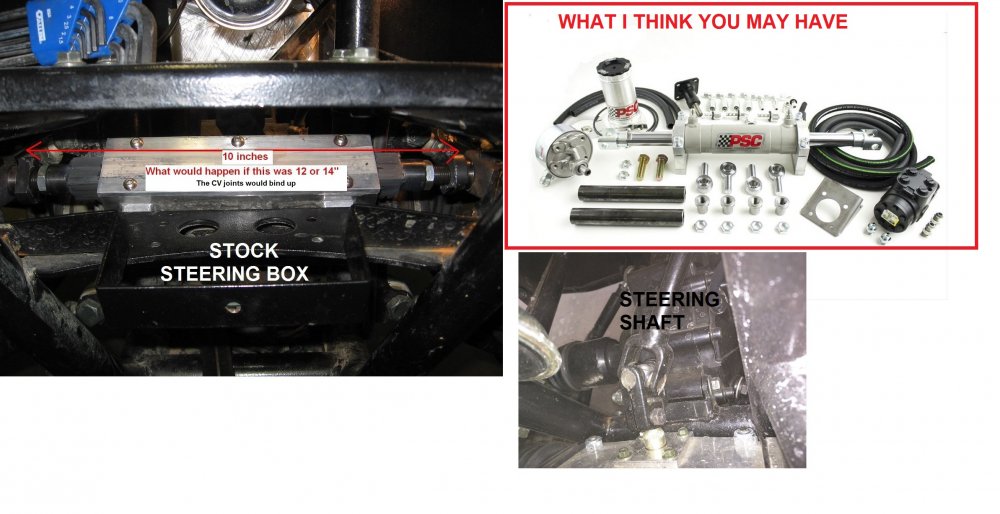

Well if it's whining it seems like it's getting a void in the steering fluid system. Still not sure what you have upfront for steering gear. Steering box or rack and pinion. Either way you might have air inline. Might have to pressure bleed or vacuum bleed system.

Share this post
