Hisun Sector 750 Accessory switch

Moosehunter

By Moosehunter
in Hisun UTV SxS Forum

 Share

Recommended Posts

Travis Grand Master

Travis

Posted
Posted

which model HiSun do you have?

The following may or may not work

I've done this before:

Cut off the plugs (should be male and female) of The utvs connector, and strip the wire, install crimp connectors. Do the same for the Light connector.

I usually use this type, https://www.amazon.com/Nilight-GO-05-Terminals-Connectors-Circuit/dp/B00SUTYYS2/ref=mp_s_a_1_5?keywords=quick+connectors+electrical&qid=1572137472&sprefix=quick+connectors&sr=8-5



any hardware store should have them.

Link to comment
Share on other sites
Moosehunter Apprentice

Moosehunter

Posted
  • Author
Posted

I have the Sector 750. I guess my problem is I don’t know which wires lead to this switch? I pulled the switch and it’s fully wired into the wiring harness but where  it leads to I havn’t figured out. There is one  plug dangling under  the plastic near the fuse box  with a double wire going to it..

Link to comment
Share on other sites
  • 2 years later...
1911rocks Newbie

1911rocks

Posted
Posted (edited)

On my 2021 750 EPS there (4) #16awg  Wires on the back of the "ACCT" Switch from Top to Bottom as if viewed from the windshield looking the vehicle. They are (top to bottom:

Or/Rd - 12vdc from Fuse 15 panel under front hood/cowling

Yel/Red - switched (above 12vdc) to Rear Driver Side Gray Plug

Blue/Brn - 12vdc from Fuse 15 panel under front hood/cowling

Red/Brn - switched (above 12vdc) Passenger Side Fender Well Gray Plug

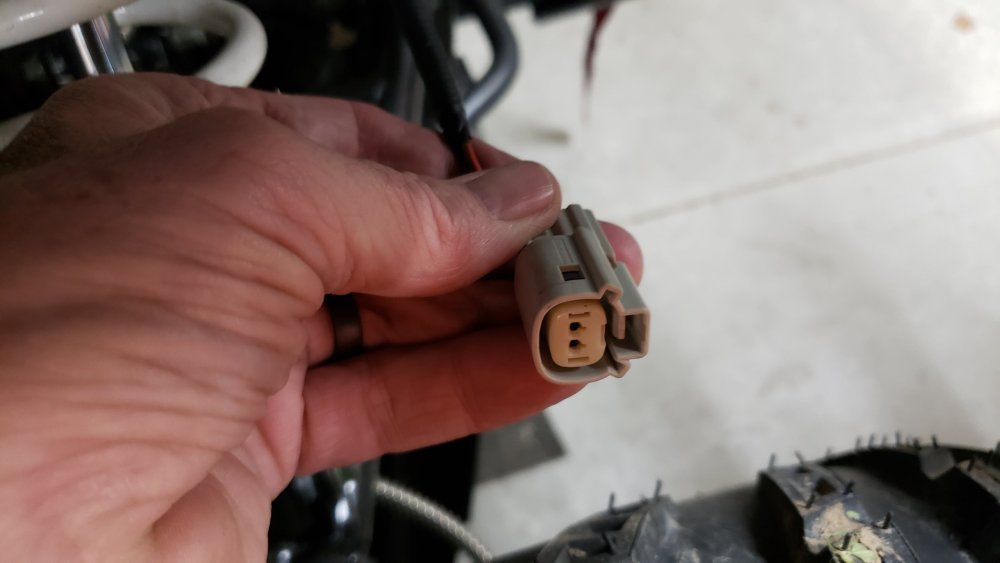

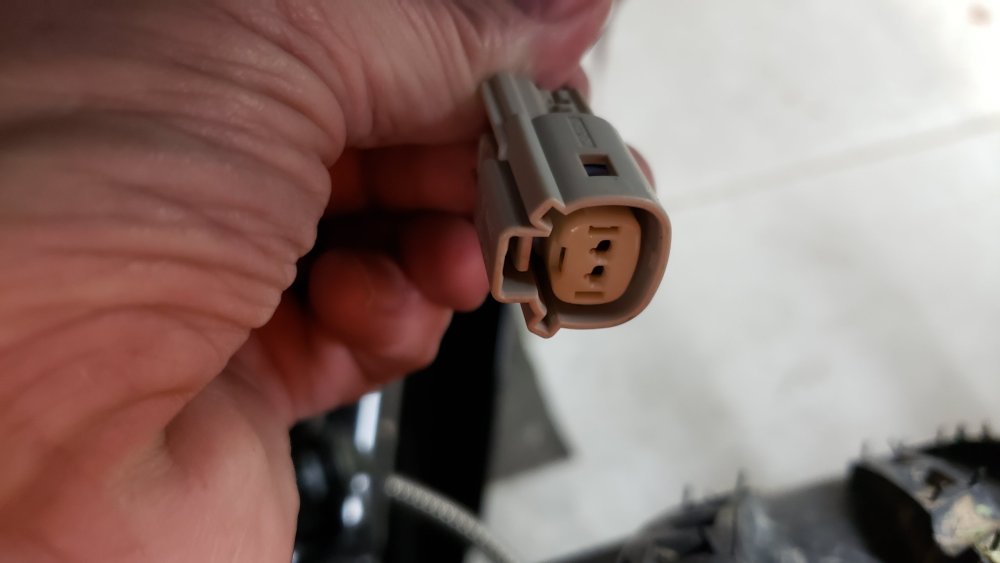

In my case I used the switched  red/Brn to trigger a Relay to Drive a 52in Curved Light Bar. I plan on using the Rear ACCY Plug to drive (2) work lights over the Bed pointing to rear.  For those looking for the "elusive" Gray Plug it looks like the photo...EXCEPT there is a water proof pug blanking it off.  Mine was Black







Edited by 1911rocks
spelling
  • Like 1
Link to comment
Share on other sites
  • Alex changed the title to Hisun Sector 750 Accessory switch
