Everything posted by Tinman

  1. Here's the place where everyone can describe their mod that really made a difference. Pics would be really helpful. I'm not referring to the 'must do' list of mods, but rather to stuff like suspension, electrical and so on that made your machine better. #1 on what I would like to see is suspension. Charlie installed some awesome shocks, but what have you done? Cost / supplier / how it helped would be awesome...
  2. Any of you heard of this? I've had rough throttle issues for a while, so I worked it out to a plugged carbon canister. Stomping on the gas, especially after filling up usually resulted in a coughing and spitting engine. Unhooked to vent hose from the canister coming up from the gas tank and problem is solved. After two days of no problems, I have this and it has me stumped big time. Driving home at 100 kms/hour, I filled up. It starts raining. When I hit 3500 rpm in 5th gear, the engine misfires repeatedly. If I let go of the throttle to below 3500, its fine. Does this consistently. It acts as if there's a rev limiter. So I played around. dropped it into fourth, and I could do 4500 rpm, but then misfires. It seemed that if I hit 60 kms/h, it misfires. I should ad that before this issue started I heard a loud click. Any idea? I can't even begin to wrap my head around this one...
  3. Tinman

    Aftermarket Shocks for Trooper

    You mentioned two different sets here. I take it the bottom info is for the rear shocks?
  4. Anyone have relatively new or in great shape rear shocks they want to sell me? Live near Miami? I also have a ton of new spares: wheel bearings, clutch, timing belt, etc... if anyone wants a list with prices, please email
  5. Tinman

    Trooper loud clunk in front

    I mean, only when you're in 4x4? if so, it could simply be your diff lock cable is out of adjustment, even if you didn't use the diif lock. the adjustment is finicky and it will clunk loudly every once in a while if the asjustment is out.
  6. Tinman

    Trooper loud clunk in front

    Does it c'unl when you have the 4x4 on only? it can be the diff locker adjustment.
  7. Did you take apart the fuse holder behind the seat? when my pump went, i checked those wires and a good third had melted together. You likely have a bad short, and somehow the winch is giving power through the short to the pump and fan, which are linked.
  8. Thanks Hardy and Kinarfi. 2nd gear is ok but not great. I have to give it a half-second, but when I do, it doesn't grind. Everything shifts fine, which is weird. I'll keep looking. we're usually out every week in th mountains, and wife gets antsy when something pops up... I'll post the issue once I find it
  9. I'll get right to the issue in the hopes someone else has come across this: on my T2 1100 (20,000 miles on original clutch), driving up a climb in third gear, power is interrupted as if there's a missing tooth on the gear or the spline is worn down and the gear slips. I hear no grinding. Just a sudden power 'hiccup'. Neither seems likely, but I can't explain the issue. Checked: differentials. changed the oil, no metal pieces and oil runs clean. Nothing on drain plug magnets. I will be doing the same to transmission oil... This happens on 4x4. Not sure if it happens on 2 wheel drive, as i usually run it always on 4x4 Has anyone had splines strip, or issues with third gear? OUTPUT SHAFT I know of issues where the end has sheared off. Are the new output shafts supplied by joyner better? If I have to open the tranny, might as well replace that too... Anything else I ahould replace now that I'm at it? Thanks to all for any recommendations...
  10. Tinman

    over filled Gass tank

    I had my carbon canister get loaded up with fuel and plugged. No air was getting into the tank, creating a vacuum. Try unscrewing your gas cap. it's stupid, but worked for me. I chucked my carbon canister.
  11. Tinman

    Radiator Fan

    My fan's always on. Stock fan was drawing too many amps - kept blowing my 15amp fuse. Went aftermarket, and am on my second 3000cu fan. Bring a new spare fan with me just n case, together with my spare fuel pump, spare wheel bearing, spare ...
  12. Tinman

    STARTER

    Did the interposing relay, but still had problems. So i: removed starter and dissassembled. water had gotten in and one brush was seized. easy fix. Who designed the intake? idiot. flipped it upside down. Now, i can get to the starter easily, plus the MAS doesn't get crammed with mud. Moved the starter cable from the cutoff switch to the battery direct. Why complicate things? Everything works good so far...
  13. Tinman

    Frame breakage

    Had the same prob. Nearly lost my rear swingarm on an uphill loose gravel climb. luckily, i knew a guy with a 70's landcruiser jacked three feet high and a 10 ton mech whinch. He got behind me, lifted my rear end off the ground and drove 20ks to get me home. Felt like i lost my virginity with that one, haha
  14. Tinman

    Drive Line Tip

    Lucky you. i hear a bag of rocks everywhere. And yes, I did re-lube my cv joints after changing boots.
  15. I do tons of mixed driving - offroad and carrying 4 people on my T2, and onroad at 100 kms/h. At higher speeds, I feel tremendous heat coming from the back into the cabin. Even at low speeds, I still feel heat. Seems like there isn't proper airflow, as it's being sucked back. It's not the heat that bugs me, but rather what seems to be inneficeincy. Thinking of doing something lotus elise style, with the stock rad mounted at an angle under the front, and airflow bringing it up from underneath. There's room, if I keep the rad angle at 20 degrees or so and perhaps raise the hood an inch advantages: at that angle, there's less mud and DUST, which is a major problem here in summer months, 2 less suction from the back ??? 3 I have a half screen which folds into full when raining, which improves airflow Disadvantages Does it work? Loooooong coolant hoses Any thoughts?

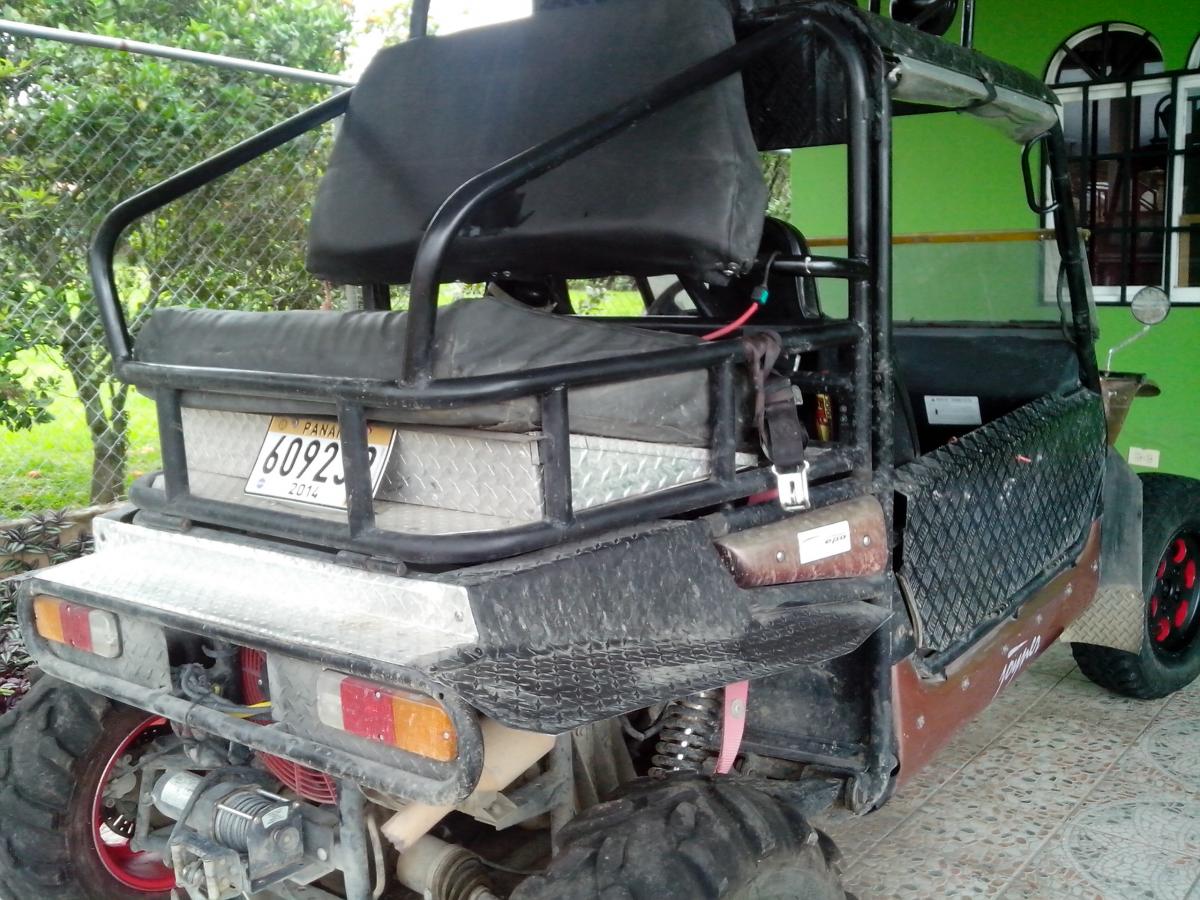

  16. Decided to do some changes. Tons of mud here 8 months of the year, so I added: Doors. They fold down, which makes it easy to get in and out, and safer if they open accidentally. A Half windshield which can be fully closed for the torrential rain. Drop down side windows made of clear plastic. Changed rear fenders to aluminum, after snapping my rear suspension off and shredding everything plastic. Beefed up rear suspension where it bolts to frame. A fold down rear facing rear seat. Lots of smaller stuff, not worth mentioning. See pics below
  17. Tinman

    Just the clutch, or...

    I agree Kinarfi. I've worked on high performance cars and motorcycles, and they always do when I dump the clutch. Motorcycle clutches are different, but they work the same way. I think I will add the springs. Just have to print Lenny's pic of the throw out bearing fork upgrade. Wife is with me on most of my trips, so it has to be reliable, just so I don't hear the 100 question interrogation as I try to fix the machine. As an aside, on my last trip, something unusual happened - three different failures: #1 a short circuit that cut out my fuel pump and #2 my rad fan. Only found out the total damage as I repaired each in turn. Then, #3 no fuel pressure. I patched the pump up directly to the master cutoff switch, but left it on by mistake when I came across an idiot in no-man's land with no 4x4 blocking the road and refusing to budge. Left the master on, pump working, and figured I had burned out the bosch pump when I realized what I did. So, I switched to my old joyner pump. Still, no fuel pressure. Looked in the tank, it was full of crap. Pulled the hose, and no gas leaked out. Turns out it was blocked. Sheesh. Blew through and it cleared the garbage enough to limp home. suuuu, I got some simple work to do. Lesson: Always bring extra wire, always look for the stupid solution first. And don't trust your gas stations.
  18. Clutch and pressure plate? It's been 15k kms on my machine, and my clutch is slipping. Figured it's time to change it, but should I change the pressure plate too? Looked in the forums, but haven't seen this question addressed. Did see Lenny's post on the pressure plate and throwout bearing fork upgrades, but still undecided as mine has worked fine for what I'm doing...
  19. Tinman

    Just the clutch, or...

    Lenny, you always have the most detailed, helpful advice. Perfect! And now that I'll be adding the springs, I'll strengthen the throw bearing fork too. Thanks again!
  20. Tinman

    fuel tank

    Nice and easy. Thanks Lenny...
  21. Tinman

    temp gauge

    Thanks Lenny!
  22. Tinman

    temp gauge

    I was hoping you'd say that dedub
  23. Tinman

    temp gauge

    Which sensor Lenny - the one at the head or the one on the radiator at the bottom? I took the Rad one out and put my temp sensor there, and have had no running issues at all. Hopefully I pulled the right one...
  24. Tinman

    Manual 4 wheel drive

    I made my own manual connection, and got a cable at the local motorcycle shop. Where I am, it's difficult to get to a machine shop, so everything has been done with a hacksaw, file and drill. It's worked perfectly for well over a year, with no issues at all. You can see it here: http://www.pauldaytonscifi.com/spotlight.html You'll have to scroll down. I did buy a lever from Lenny, which let's me engage the 4X4.
  25. Tinman

    Wheel Bearings, Again

    If you want top quality bearings, a Timken roller one that will fit has the number JRM3565 XD on the outer race, JRM3535A on the inner race. I've had to use one or the other number to order the actual bearing, as it seems supply companies can't make up their mind on which number to use.


×
