My drain plug is leaking at a slow pace but enough to be leaving oil on floor. Talk to dealer and I replaced o-ring and checked mating surfaces and all good. Still leaking but at a slower pace. Now dealer is calling Hisun to see what’s up. I’m thinking the recess in the drain plug was cut to deep and when installing o-ring it just doesn’t seem to leave enough rubber above the flush/crush portion of sealing surface. Maybe a defective drain plug, that would be my guess. Wondering if anyone has had this issue with there’s. Dealer said this is a first for him. Waiting on reply from dealer.

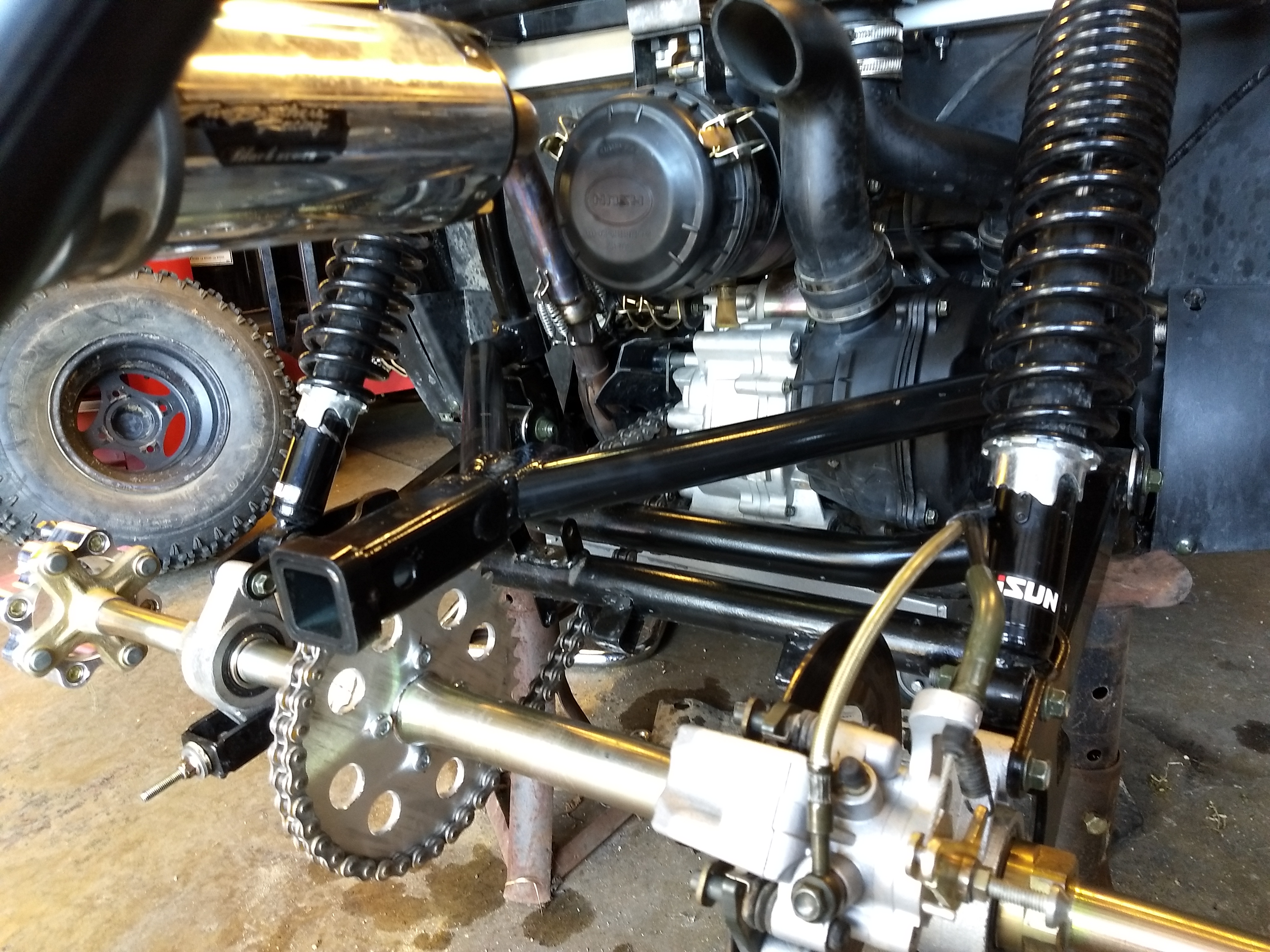

Hello all, I have a hose that is in need of replacement but I don't know what it's for. It's twords the rear of the engine down lower, I've looked around for a diagram or an exploded view but can't find anything, I'm assuming it's a radiator line but idk. I guess I could just disconnect it and I'm sure I'll find out real quick what's in it.
Also are these hoses cut and sold to fit or do we need to just buy (whatever) length of hose and just get it in there?
Hi, I’ve recently purchased an Ag Pro 1200 to find that it doesn’t have engine breaking. I live on a very steep property and it feels dangerous not having it. Does anyone know if it can be added? Or any other ideas? I’m mostly using it for weed spraying using a hand held wand… so I need to creep along stopping and starting. Thanks for helping.
This post will explain how to hook up your PC to the ECU of a Hisun/Coleman/Etc UTV to be able to read error codes & engine parameters for troubleshooting purposes.
This is applicable to all small engines using the Delphi MT-05 ECU. This should cover all fuel injected Hisun models, as well as various other Chinese FI engines, as the Delphi MT-05 ECU seems to be the favored ECU solution.
Even though we get actual engine error codes to display on the dash, sometimes we have “pending codes” (not yet confirmed by the ECU) or other intermittent issues that are hard to diagnose, for example a poorly connected sensor that may give intermittent false readings, or a sensor that’s putting out bad date, but not bad enough for the ECU to realize.
The setup requires 2 cables, which are available for around $25 combined, a PC with a USB port, and some charityware software called “HUD ECU Hacker”. This gives the same functionality as the $300 dealer code scanner for a fraction of the price.
In searching I found info about HUD ECU Hacker, but I have yet to see info anywhere about how to hook it up to a Hisun, so I took the leap and bought some cables, and made it work. I will show a step by step of how to do so in post two.
I will be breaking this down into 2 posts:
Delphi ECU Info & Overview (This post) System setup & use Delphi ECU Info (Skip ahead to the next post if your eyes glaze over technical details)
The Delphi MT-05 ECU was developed to allow small engines to use fuel injection. A fuel injection system requires feedback from various sensors to operate efficiently. This feedback allows the adjustment of ignition timing, fuel injection volume, etc to efficiently and cleanly produce the most power possible from a given engine.
The MT-05 ECU has a number of sensors that are required for proper functioning including; Coolant temp, crankshaft position, intake temp, intake pressure, exhaust O2, throttle position, as well as some other optional sensors that are used on more complex vehicles.
From the sensors the ECU adjusts: Fuel injector timing/pulse, Idle air control valve, and ignition coil
The Delphi MT-05 puts out diagnostic data, however it is not ODB2 like a modern car, where is where it gets tricky reading it. There are three options, there is an old 16 bit piece of software Delphi has that is not able to run on a modern computer, there is the motorscanner tool for dealers ($300), or there is freeware HUD ECU Hacker with the proper cables.
2022 Brand new Joyner CV Axles and CV Joint rebuild kits are comming
1. S650.03.02.02.00 ---Joyner 650 Commando Rear
2. TR1100.03.01.03.00 --- Joyner Trooper Front
3. TR1100.03.02.03.00 --- Joyner Trooper Rear
4. D650.03.02.02.00 --- Joyner 650 Sand Spider Rear Left
5. D650.03.02.03.00--- Joyner 650 Sand Spider Rear Right
6. SV800.03.02.01.00 --- Joyner 800 Viper, SV1100 Drive shaft Left
7. 14274 --- 650 ider rear left, rear right, 800 MV; 800Viper, SV1100 Drive shaft rear left and rear right outer cv joint rebuild kit
8. 15803 --- 650 Sand Spider rear left, rear right, 800 MV; 800Viper, SV1100 Drive shaft rear left and rear right outer cv joint rebuild kit
Attached are the part photos for reference.
Above parts are now on the way to USA, will be ready for inland delivery in middle of July.
Price: CV Axle: USD250/ Piece; CV Joint kit （without grease): USD110 send to door.
There will be special discount availabe for deals completed within July 2022.
Buy 1 piece: Get 5% discount,
Buy 2 pieces: get 10% discount.
Buy 3 pieces: get 15% discount,
Buy 4 and more than 4 pieces: get 20% discount.
Please kindly note Qty for each part is not big and it is hard to forcast when there will be next offer for these kind of products unless there is sufficient confirmed order qty for productioin arrangement.
Payment method: Payoneer payment link ( can pay through bank account or credit card) or Paypal ( [email protected]) . Payment commission paid by the buyer.
Interested parties, please contact [email protected]
Casey / Leaf Asia
